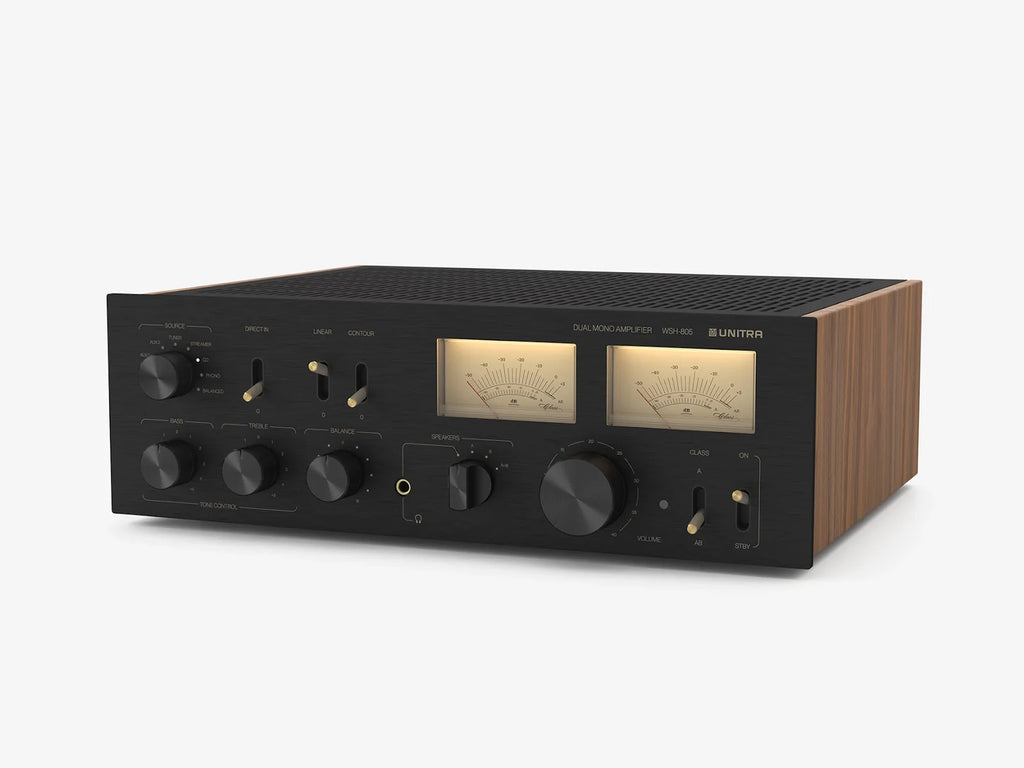

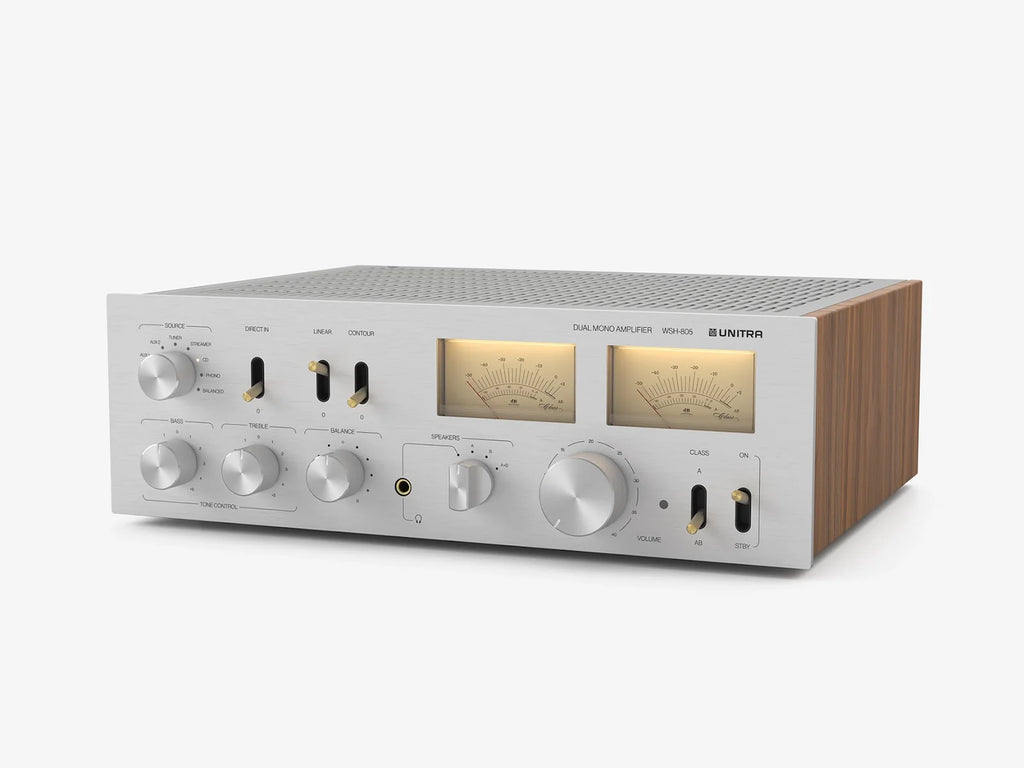

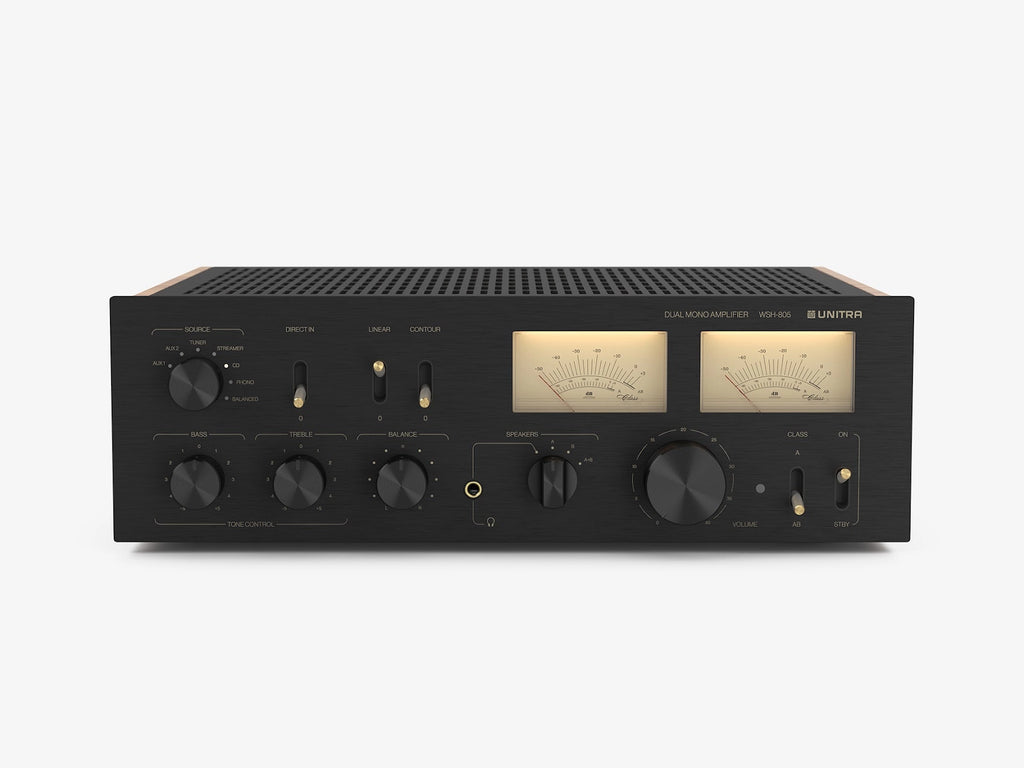

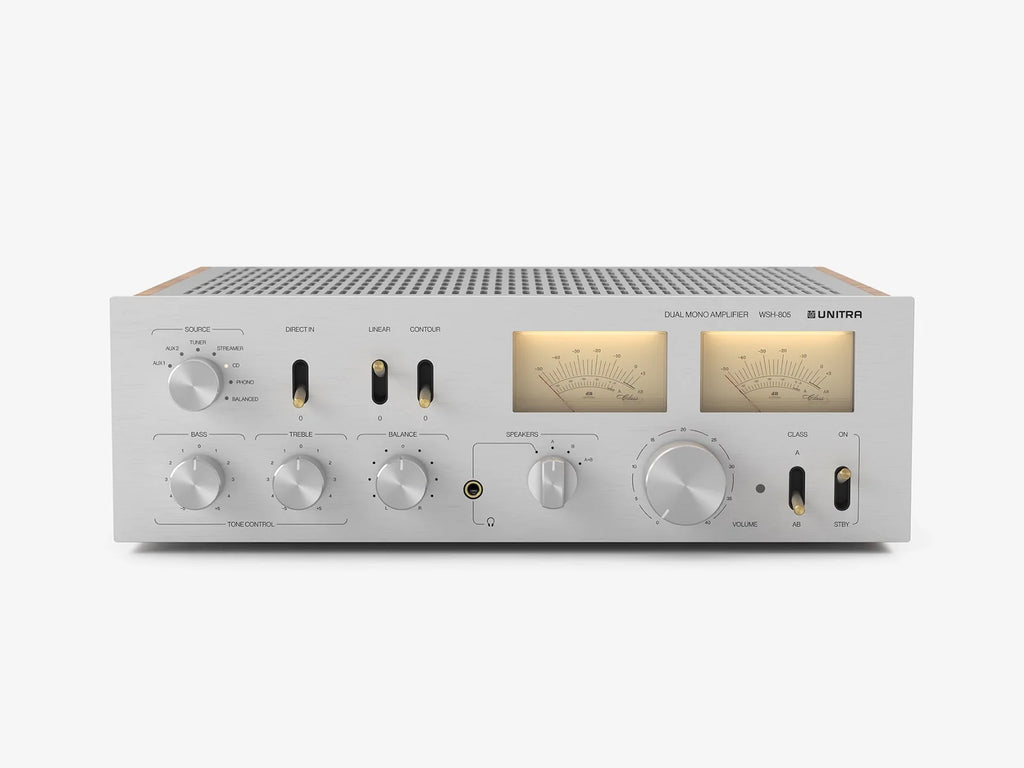

The Unitra WSH-805 Classic Edition is a refined reinterpretation of a flagship dual-mono integrated stereo amplifier, inspired by the golden age of 1970s hi-fi. This updated version retains the same proven audio architecture as the original model, preserving its full sonic performance and carefully engineered signal path topology. Elegant wooden side panels and subtle brass accents emphasize its timeless, vintage character while adding a sense of craftsmanship and warmth. Handcrafted with meticulous attention to detail, it seamlessly blends classic aesthetics with modern audio engineering. The result is an amplifier designed to appeal to listeners who value both authentic sound quality and enduring visual design.
Specifications:
DSH-805 Reference DAC:
Type: Reference DAC with Integrated Amplifier
Power Amplification Specifications:
RMS Output Power (Class AB, 8 Ω): 80 W
RMS Output Power (Class AB, 4 Ω): 125 W
RMS Output Power (Class A, 8 Ω): 8 W
RMS Output Power (Class A, 4 Ω): 16 W
Total Harmonic Distortion (THD): < 0.0008% (40 W)
Frequency Response: 6.3 Hz to 110 kHz (–3 dB)
Signal-to-Noise Ratio (SNR): 102 dB
Channel Separation: > 100 dB (at 1 kHz)
Intermodulation Distortion: 19 + 20 kHz @ 10 W < 0.0015%

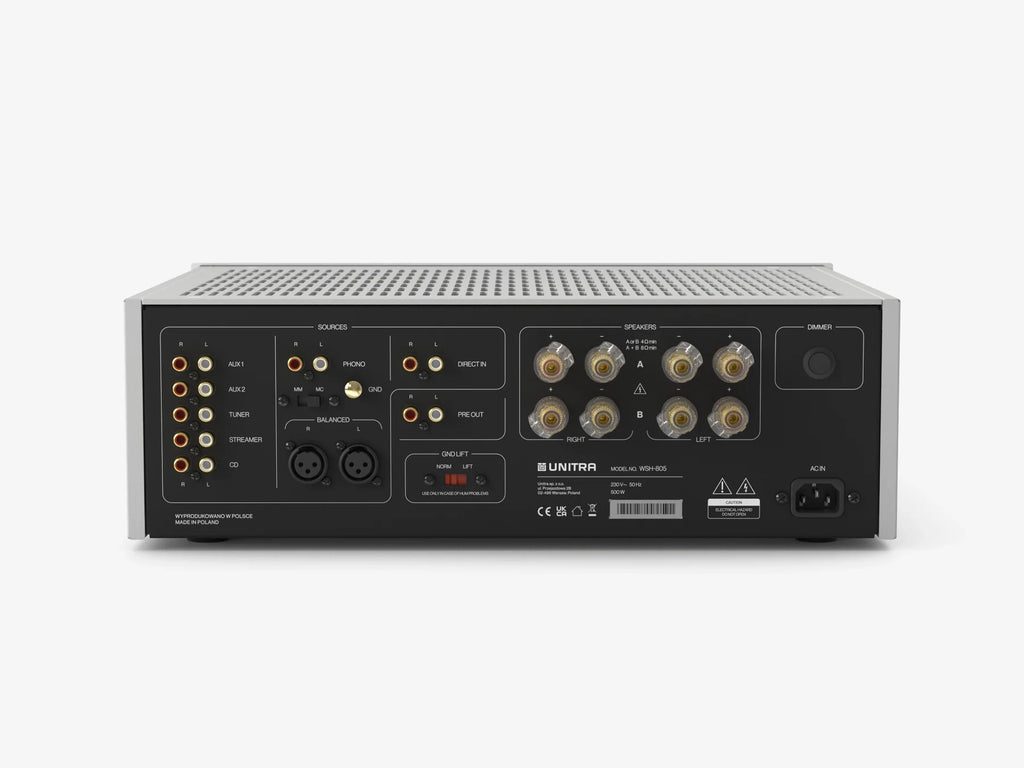

Inputs:
RCA Inputs: Aux 1, Aux 2, Tuner, CD, Streamer, Phono + GND (MM / MC), Direct In
XLR Input: Balanced
Outputs:
Speaker Terminals: A / B / AB
Headphone Output: 6.3 mm
Pre Output: Yes
Adjustments:
Tone Controls: Bass, Treble, Contour (smart adaptive contour), Linear (tone control bypass), Balance
General:
Dimensions: 440 × 385 × 143 mm (17.3 × 15.2 × 5.6 in)
Weight: 18 kg (39.7 lbs)
Gross Weight: 22 kg (48.5 lbs)
Package Contents:
Power cord, remote controller with battery, owner’s manual, warranty card
