Small Yet Mighty

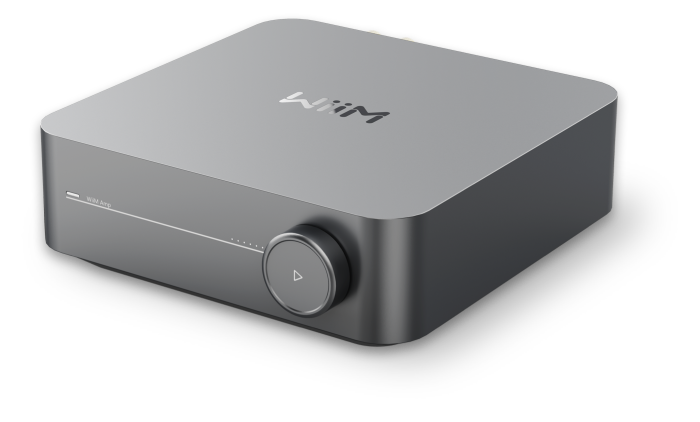

Housed in a sleek aluminum shell, the compact WiiM Amp Pro fits anywhere. Inside, premium components and innovative circuitry ensure robust, crystal-clear amplification and efficient thermal performance. It delivers 60 watts per channel at 8 ohms and 120 watts per channel at 4 ohms.

Superior Sound Quality

Featuring Post-Filter Feedback technology and premium components like the ESS ES9038Q2M DAC, TI TPA3255 amplifier and OP AMP, the WiiM Amp Pro achieves an impressive 120dB SNR and THD+N of -105dB at 5W across a frequency range of 44.1k to 192k, setting a new standard for audio fidelity.

WiiM Amp Pro - Compact Wireless Music Streaming Amplifier:
Type: Compact Wireless Music Streaming Amplifier

Power Output:
Power: 60 Watts/channel at 8 ohms; 120 Watts/channel at 4 ohms
Speaker Output: Stereo or dual mono sound

Audio Performance (Passive Speaker Terminal):
SNR: 120 dB
THD+N: 0.0005% (-105 dB)

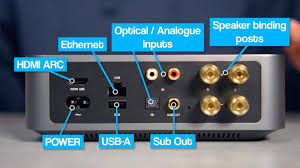

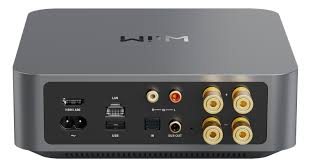

Inputs:
Audio Input: HDMI Arc, Optical, Line (RCA)

Outputs:
Audio Output: Passive speaker terminal, Subwoofer output with bass management, USB Audio Out (up to 192 kHz/24-bit), Bluetooth Transmitter

Audio Support:
Home Theatre Audio Formats: Stereo PCM, Dolby Digital (DTS not supported)
Audio Formats: MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG
EQ: 10-band Graphic EQ, 10-band Parametric EQ, 26 Preset EQ
Room Correction: Automatic Room Correction via iPhone/iPad/Android Phone or external MIC
Subwoofer Crossover: Auto-detecting cable insert, user-adjustable 30-250 Hz crossover

Connectivity:
Network: Wi-Fi 6 (802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz), 10M/100 Mbps LAN
Bluetooth: BT 5.3 with BLE (A2DP receiver and transmitter, AVRCP, HID, works with WiiM voice remote)
Streaming Protocol: Google Cast, Spotify Connect, TIDAL Connect, Alexa Cast, DLNA

General:
Dimensions: 8.54” x 7.48“ x 2.6" (217 mm x 190mm x 66 mm)
Weight: 4.59 lbs (2.08 kg)
Colors: Space Gray
Finish: Anodized Aluminum
Controls: Volume knob, play/pause, and more
LED: Status, Volume
Power Supply: 100-240V 50/60Hz AC Power
