The all new Elicit MK5 stereo integrated amplifier is designed and built to the highest standard. Housed in our latest custom case to match the rest of the Rega range, the new MK5 builds on previous Rega designs by using our multi-award-winning Class A/B power amplifier circuit to deliver a powerful 105 W per channel into 8 Ω loads (127 W into 6 Ω). Our engineers have designed a new Rega DAC circuit offering digital connectivity and greater integration with a variety of other products. We have taken great care to incorporate a high quality MM phono stage and the headphone input has been configured such that the speaker switching is performed by the output mute relay to avoid obstructing the signal path.

The heart of your music

The new Elicit MK5 calls on decades of electronic design experience. It is a complex blend of three of our most successful products which promises to deliver big on sound, power, features and style. The Elicit MK5 is capable of driving difficult loudspeakers with ease and will integrate perfectly into any audio system by offering a wide range of connectivity options. In addition to line, digital, and a high-quality moving magnet (MM) phono input, you will also find pre-out, Direct in, Record loop functionality and the high-performance headphone input.

Rega Elicit MK5 Integrated Amplifier:
Type: Hybrid Integrated Stereo Amplifier with DAC and Phono Stage
Amplifier Topology: Class A/B with discrete FET pre-amplifier and Sanken output transistors

Power Output (Continuous, both channels driven):
Output Power: 105W per channel into 8Ω, 127W per channel into 6Ω, 162W per channel into 4Ω

Input Section:
Analog Inputs: 4 × Line Level (RCA), 1 × High Quality Moving Magnet (MM) Phono Stage (RCA), 1 × Direct Input (RCA), 1 × Record Input (RCA)
Digital Inputs: 1 × Optical (Toslink), 1 × Coaxial
Supported Sampling Rates: 32, 44.1, 48, 88.2, 96, 176.4, 192kHz
Supported Bit Depths: 16 to 24 bit

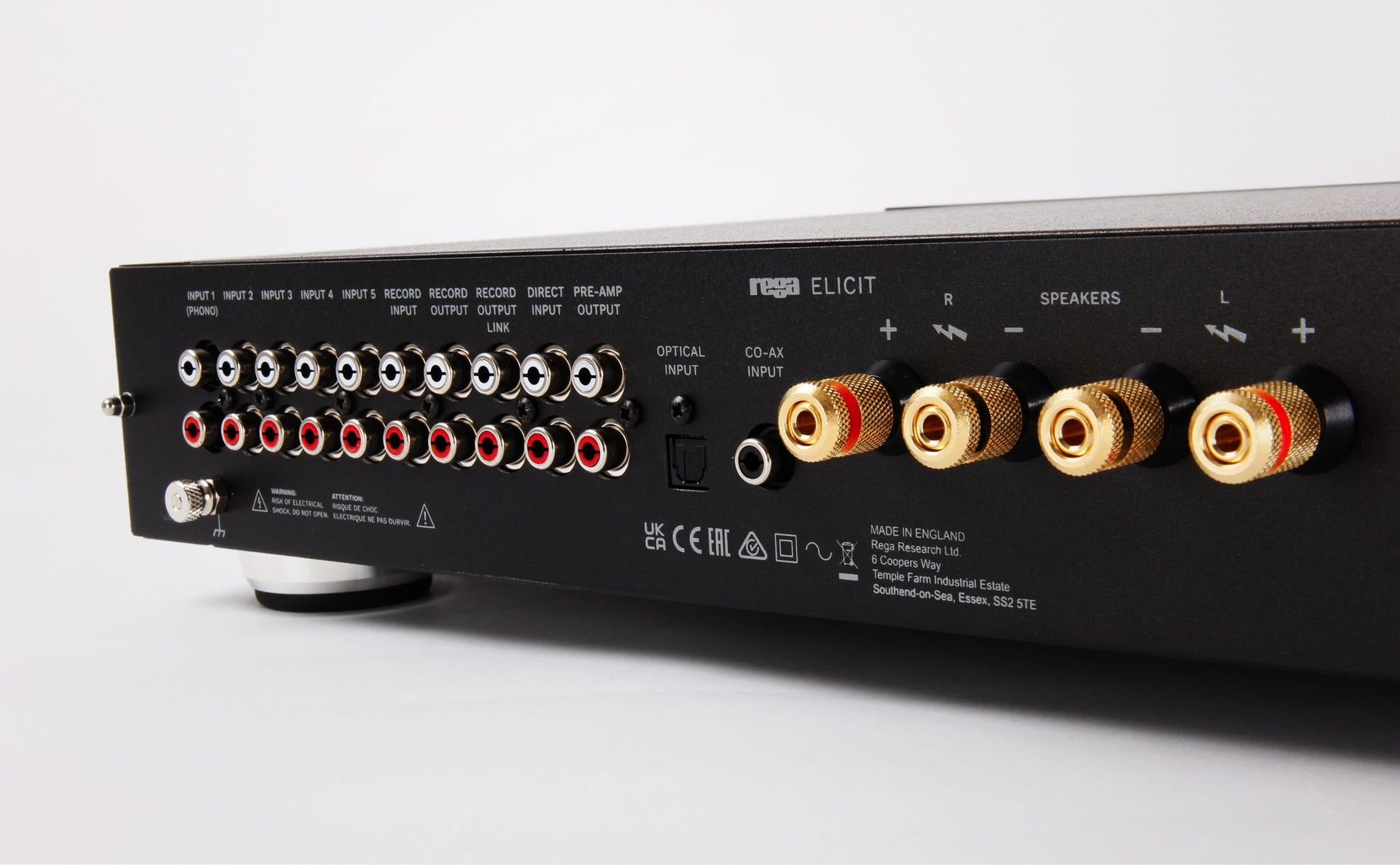

Output Section:
Speaker Outputs: Binding Posts
Headphone Output: 6.35mm (1/4") Jack (on front panel)

Phono Stage Section:
Type: High Quality Moving Magnet (MM)

DAC Section:
Type: High Performance Rega DAC Circuit
Input Receiver: Wolfson S/PDIF receiver IC (galvanically/optically isolated)
DAC Chip: Wolfson DAC
Output Stage: Rega designed discrete line-driver circuit

Pre-Amplifier Section:
Design: New advanced discrete FET based pre-amplifier circuit (shared with Aethos)
Volume Control: Alps volume potentiometer
Key Components: Discrete circuitry, high-quality relays, polypropylene capacitors

General Specifications:
Power Supply: Internal linear power supply
Dimensions (W×H×D): 432mm × 82mm × 340mm (Depth includes loudspeaker terminals)
Weight: 12.5 kg
Warranty: Lifetime warranty against manufacture defects

Included Accessories:
Remote Control, Power Cable, User Manual

Additional Features:
Headphone Output: Dedicated headphone amplifier circuit
Direct Input: For home theater bypass or other line-level source
Record Input: For tape monitoring
Thermal Protection: Thermal Cut-Out
Design Philosophy: Focus on discrete circuitry, component selection, and accurate music reproduction
