In the REVO SC-2 preamplifier, a pure and elegant style combines with the most refined technology. Completely remote-controllable in all its functions, the REVO SC-2 model uses the exclusive P.D.D.A. (Programmable Digital Analogue Attenuation) volume control. It a system that attenuates between 0.0 dB and -127.0 dB in steps of 0.5 dB, with a typical precision of +/- 0.01 dB.

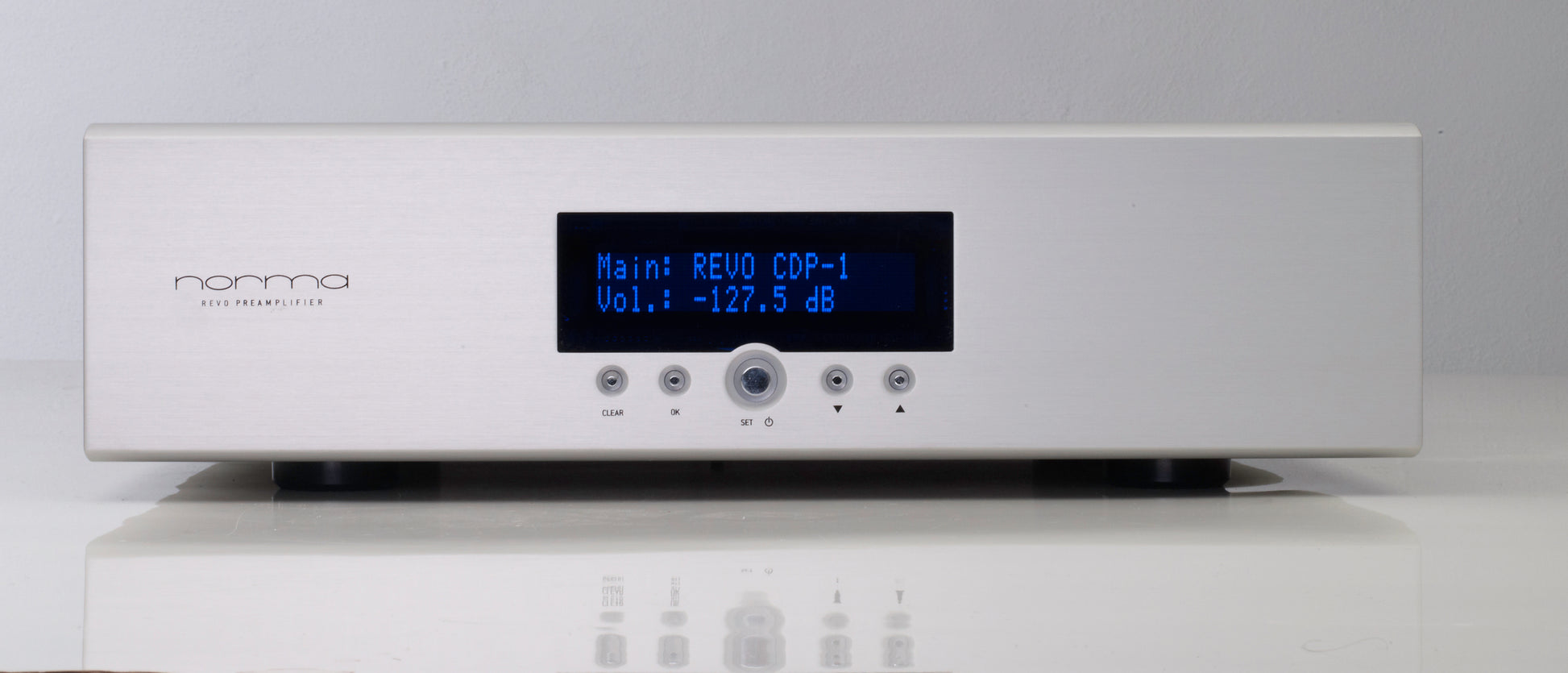

Plus, the input selection uses high-quality relays, no integrated circuit is used on the signal path. The whole conception of the REVO SC-2 is tended to combine a modern operative functionality with the severity for audio signal typical of a devise which is really High-End. Its plasma display with adjustable lightness intensity is always clearly visible from a distance, and thanks to the microprocessor management and a dedicated software, the REVO SC-2 combines simplicity and comfort with extraordinary versatility, completeness and functions customization. The SC-2 preamplifier can be mounted with a Phono stage, and also updated to the Multichannel mode. Finally, it can work both in Active and Passive mode.
Features:
- Extreme low noise, high speed schematic topology and wide band ( >2 MHz ).
- High filtering capacity (51.000 uF) with numerous (23) capacitors, to achieve low impedance.
- Toroidal power transformers specially designed for audio applications, low flow dispersion, low mechanical noise, high permeability magnetic core with consequent low output impedance.

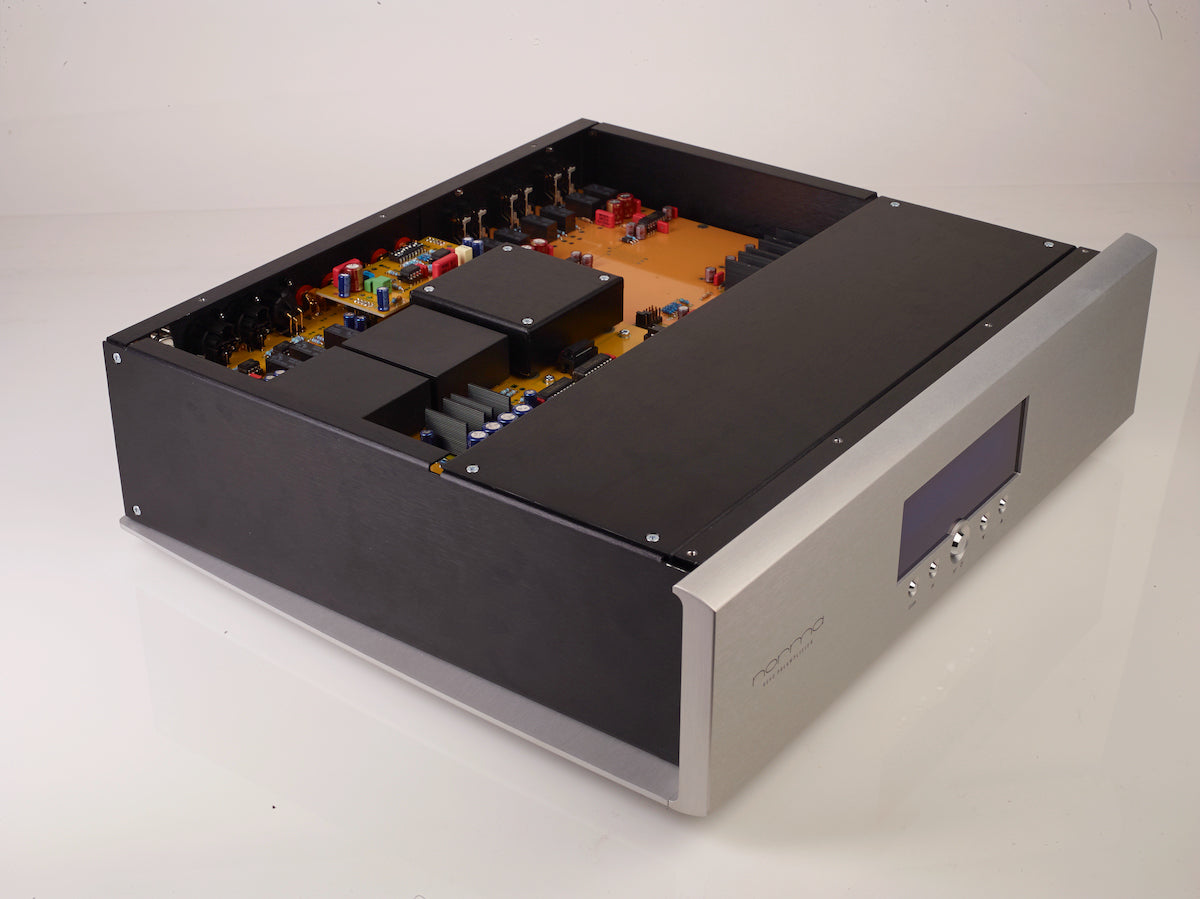

- Full aluminium non-magnetic frame.

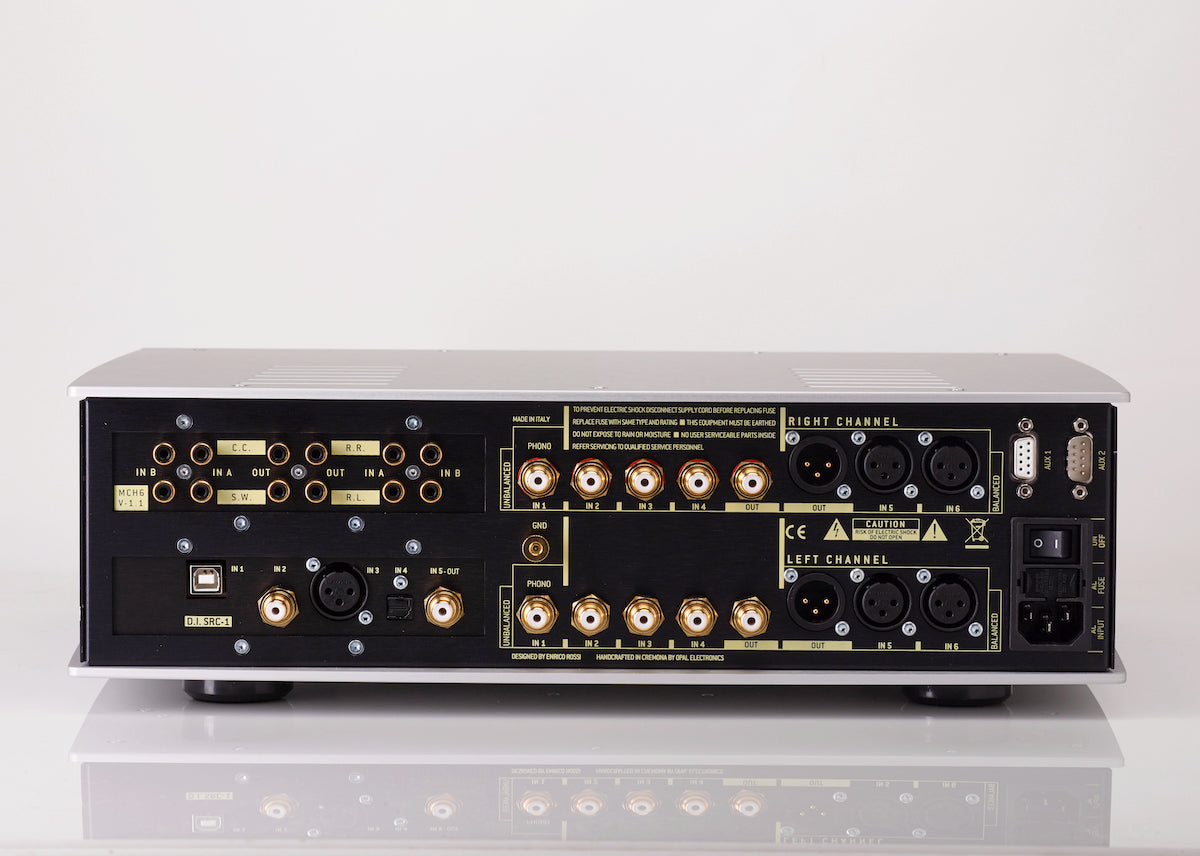

- Inputs & Outputs configurable RCA (unbalanced) & XLR (balanced)
- Inputs selection by relay with GOLD/PALLADIUM contacts.
- RCA solid core gold plated plug connector for any signal connections.
- P.D.A.A. Programmable Digital Analogue Attenuation, volume control
- 0.5 dB step an 127.5 dB range attenuation, made by relays and high quality precision resistors.
- Active or Passive modality for best audio performance.

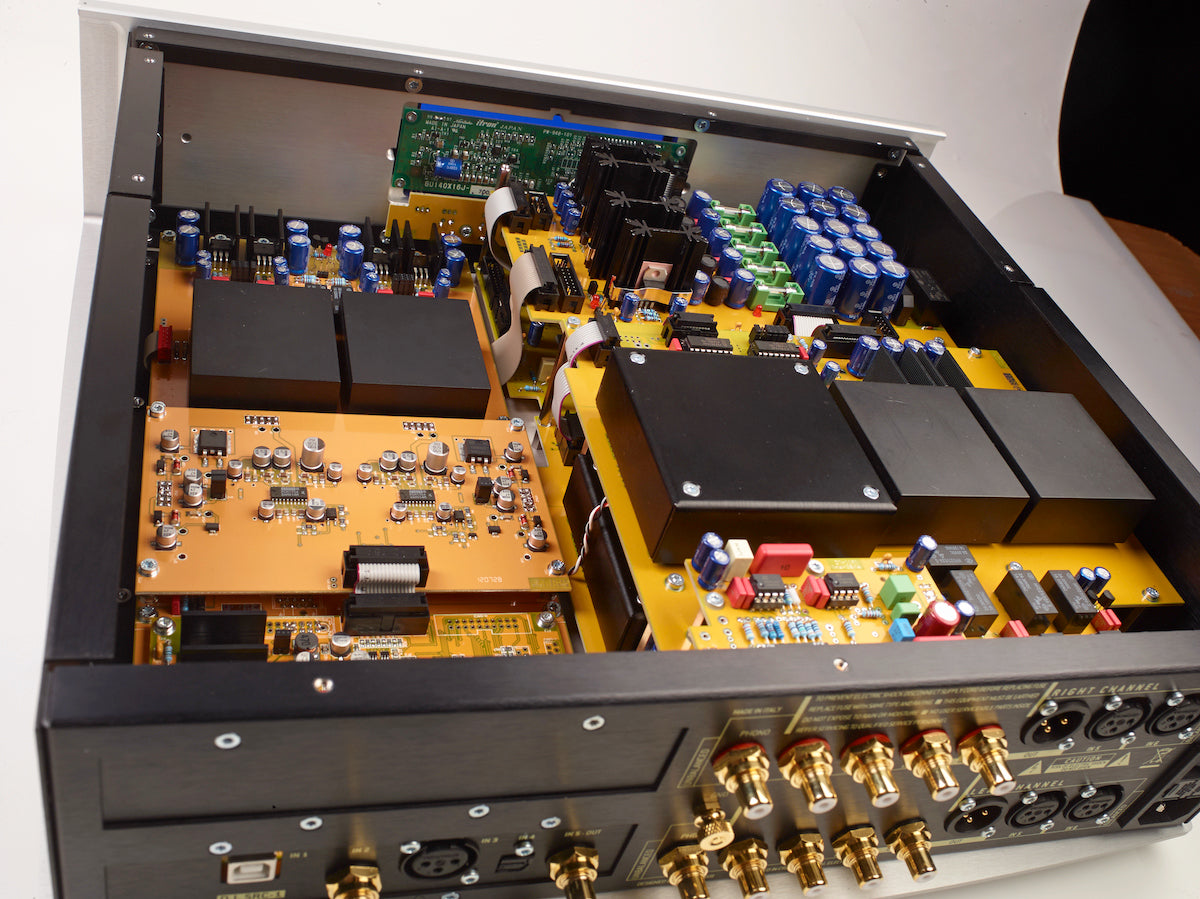

- Possibility of set the PHONO board inside, by 2 mono board for Left & Right channel.
- High quality phono stage, for MM and MC pick-ups.
- Two free slots for future upgrades.
- Possibilities of upgrades with MCH-6 (Multichannel board with 2 set of 6 inputs, outputs) for Audio-Video application.
- Possibilities of upgrades with DAC Board with USB & SPDIF inputs, 24 Bit, 192 kHz resolution.
- Remote control of all functions with NORMA remote control.
Tech Specs:
Input: 4 RCA, 2 XLR Balanced, Optional Phono at INPUT 1
Input Impedance: 47Kohm (not selected input) / 10 Kohm (Selected Input)
Input Configuration: Phono MM/MC, Line, Balanced, Multichannel & DAC option
Output: 1 RCA, 1 XLR Balanced
Output Impedance: 220 ohm
Output Voltage: 7.5 V r.m.s.
Frequency Response: 0 Hz – 2.0 MHz (-3dB, non filtered)
Gain: 17.5 dB Active mode, 0 dB Passive mode
Circuitation: Solid state, Dual Mono, hi speed, low noise
Supply: 230 V AC / 50 Hz (100V AC or 115 VAC / 50-60Hz in some countries)
Dimensions (HxWxD): 110 x 430 x 365 mm
Weight: 15 Kg
Note: Stereophonic Preamplifier completely RC
Option for this model:
MCH6-REVO
DAC1-REVO
PH3-REVO
Black finish is also available on special order for additional fee. Please contact us to confirm pricing.
