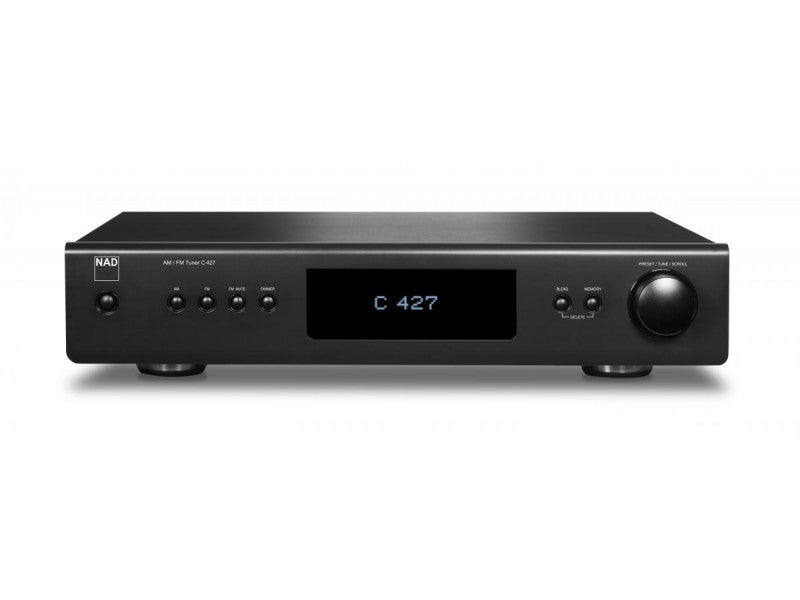

NAD C 427 Stereo AM FM Tuner:
Type: Stereo AM/FM Tuner
Tuner Features:
FM Features: RDS data service
Presets: 30 Station random presets (AM or FM), 8 Character preset naming capability for AM & non-RDS stations
RF Front End: MOS-FET
Display: VFL display
Tuner Performance:
Usable Sensitivity (Mono): 1.2 µV (10.8 dBf)
50 dB Quieting Sensitivity (Mono): 2.5 µV (17.2 dBf)
Signal-to-Noise Ratio (Stereo): >70 dB
Total Harmonic Distortion (Stereo): <0.2%
Frequency Response: 20 Hz - 15 kHz (+0.5, -1.0 dB)
AM Usable Sensitivity: 48 µV/m
Inputs & Outputs:
Analog Output: 1 x Fixed Level (RCA)
Analog Output: 1 x Variable Level (RCA)
Other Output: 1 x 75Ω FM Antenna Output (F-type connector)
Antenna Inputs: 1 x 75Ω FM Antenna Input (F-type connector), AM Loop Antenna Terminals
Control & Connectivity:
Remote Control: NAD Full Function Remote Control (via IR)
Control Inputs: IR Input, RS-232 Serial Interface for system control
General:
Power Requirements: 120V, 60Hz or 230V, 50Hz (switchable)
Power Consumption: 15W
Dimensions (W x H x D): 435 x 82 x 290 mm (including feet and knobs)
Weight: 3.7 kg
