With the C 368 Hybrid Digital DAC Amplifier, your home audio system will never fall behind the pack. Thanks to our MDC technology, the C 368 is easily customisable and ready for all future features and upgrades. With the optional BluOS® module, the C 368 can connect to your network and be controlled through a smartphone, tablet, or desktop, and connect wirelessly to any other BluOS Enabled device to create a multi-room High Resolution Audio system. You can also instantly connect to the C 368 through Bluetooth, giving you the ability to stream wirelessly from any Bluetooth Enabled device, and if you’re a vinyl fan, you can also add a turntable. Enjoying music has never been so easy. A totally modern approach to amplification, the C 368 is the ultimate amp for any music lover’s system.

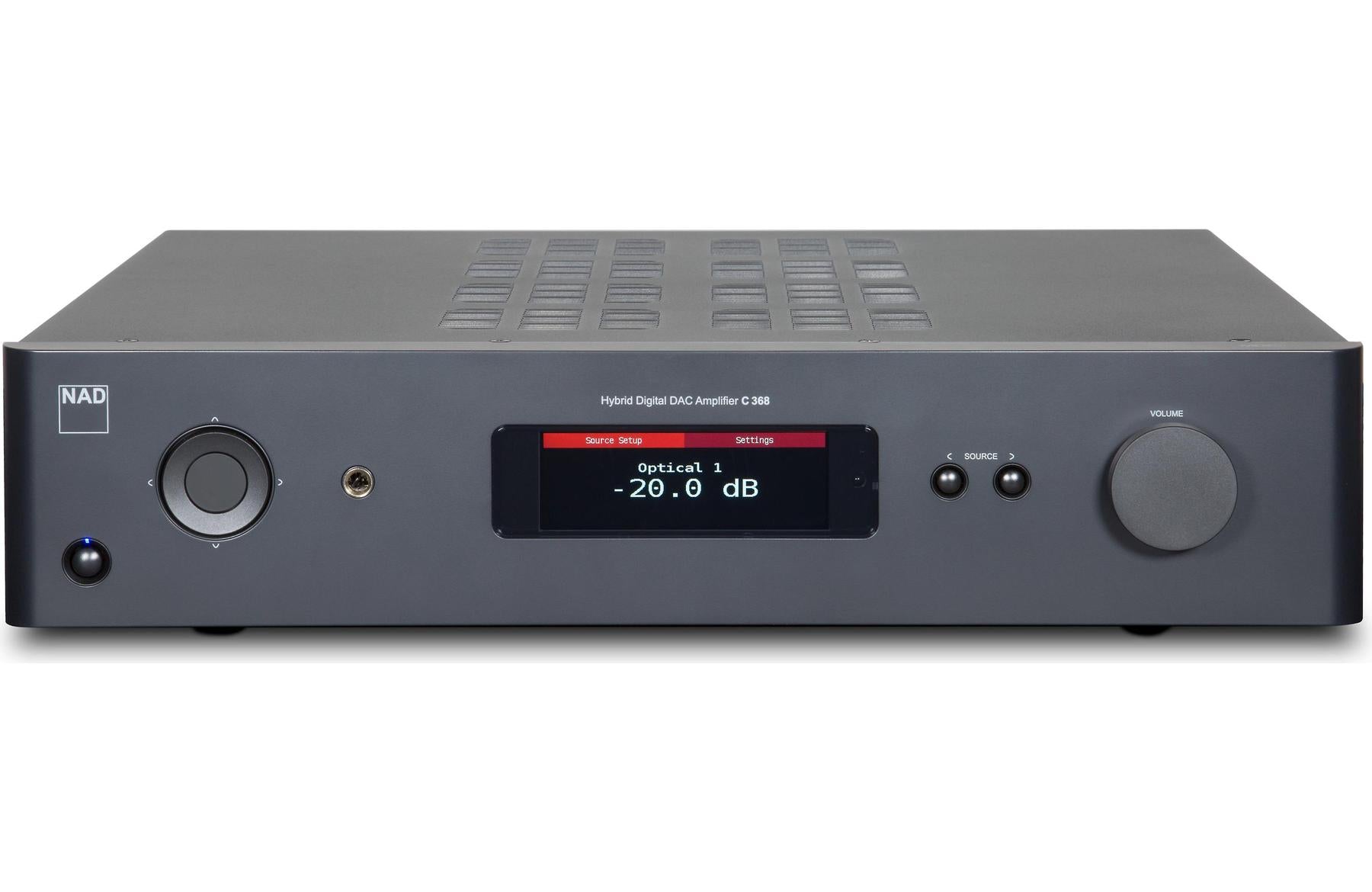

NAD C 368 Hybrid Digital DAC Amplifier:
Type: Hybrid Digital Integrated Stereo Amplifier
Amplifier Topology: Class D (HybridDigital with NAD PowerDrive)

Power Output (Continuous, both channels driven):
80W per channel into 8Ω (20Hz - 20kHz, at ≤0.03% THD)
150W per channel into 4Ω (20Hz - 20kHz, at ≤0.03% THD)
Power Bandwidth: 20Hz - 20kHz (±0.1dB)

Distortion & Performance (General):
Total Harmonic Distortion (THD): <0.03% (20Hz - 20kHz, at 1W)
Intermodulation Distortion (IMD): <0.03% (CCIF)
Frequency Response: 20Hz - 20kHz (±0.3dB)
Signal-to-Noise Ratio (S/N): >98dB (A-Weighted, ref. 1W)
Damping Factor: >250 (ref. 8Ω)

Line Input, Pre-Out Section (Typical Performance):
THD (20Hz – 20kHz): <0.005% at 2V out
Signal-to-Noise Ratio: >106dB (IHF A-weighted, ref. 500 mV out)
Channel Separation: >75dB at 1kHz, >65dB at 10kHz
Input Sensitivity: 380mV (ref. 500mV out, Volume maximum)
Input Impedance: 47 kΩ

Phono Input Section (with optional MDC module):
THD (20Hz – 20kHz): <0.3% at 50W out
Signal-to-Noise Ratio: >76dB (MM cartridge, IHF A-weighted, ref. 500mV out)
Input Sensitivity: 4.1mV (ref. 50W 1kHz 4Ω out, Volume maximum)
Input Impedance: 47 kΩ + 100pF

Line Input, Headphone Out Section:
THD (20Hz – 20kHz): <0.005% at 1V out
Signal-to-Noise Ratio: >105dB (IHF A-weighted, 32Ω loads, ref. 2V out)
Channel Separation: >56dB at 1kHz
Output Impedance: 0.5 Ω

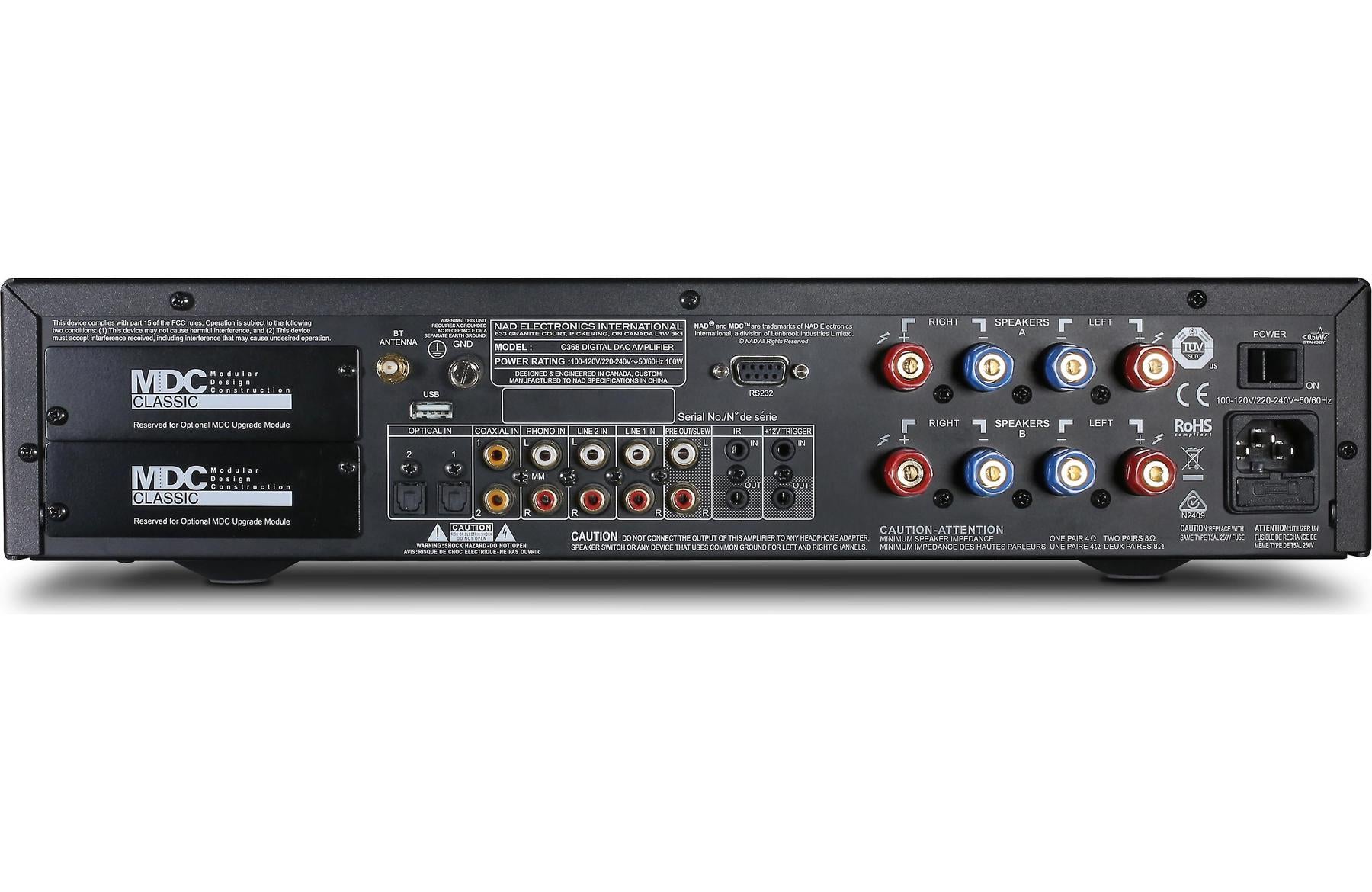

Input Section:
Analog Inputs: 2 × Line Level (RCA), 1 × Moving Magnet (MM) Phono (optional via MDC)
Digital Inputs: 2 × Digital Optical (Toslink, up to 24-bit/192kHz), 1 × Digital Coaxial (RCA, up to 24-bit/192kHz)
Bluetooth Input: 4.1 with Qualcomm® aptX® Decoding (optional via MDC module)
Input Sensitivity (Line): 300mV
Input Impedance (Line): 47kΩ
Overload Margin (Line): >20dB

Output Section:
Pre-Out: 1 × Fixed/Variable (RCA)
Subwoofer Out: 1 × (RCA)
Headphone Output: 3.5mm Jack (on front panel)
Speaker Outputs: 4mm Binding Posts (supports two pairs, A/B switching)

DAC Section:
DAC Type: 24-bit/192kHz Premium Burr-Brown PCM
Resolution: 24-bit/192kHz (on Optical and Coaxial inputs)
Digital Filter: Soft Knee

General Specifications:
Power Supply: Universal Switch-Mode Power Supply (SMPS)
Power Consumption: 0.5W Standby, 300W maximum
Dimensions (W×H×D): 435mm × 100mm × 325mm (including feet and connectors)
Weight: 7.6 kg
Finish: Brushed Aluminum Front Panel (Silver or Black)
Display: High-Resolution OLED Display

Included Accessories:
Remote Control (NAD SD50), Power Cable (IEC), Factory Test Report, User Manual

Additional Features:
MDC (Modular Design Construction) Slot: Two slots for future upgrades (e.g., BluOS, Phono, HDMI, etc.)
NAD Link: For system control and integration with other NAD Link components
Trigger Input/Output: 12V DC (3.5mm Jack) for system automation
IR Input: For custom remote control integration
Auto Sense: Automatically powers on with signal detection
Tone Controls: Defeatable Bass and Treble controls
