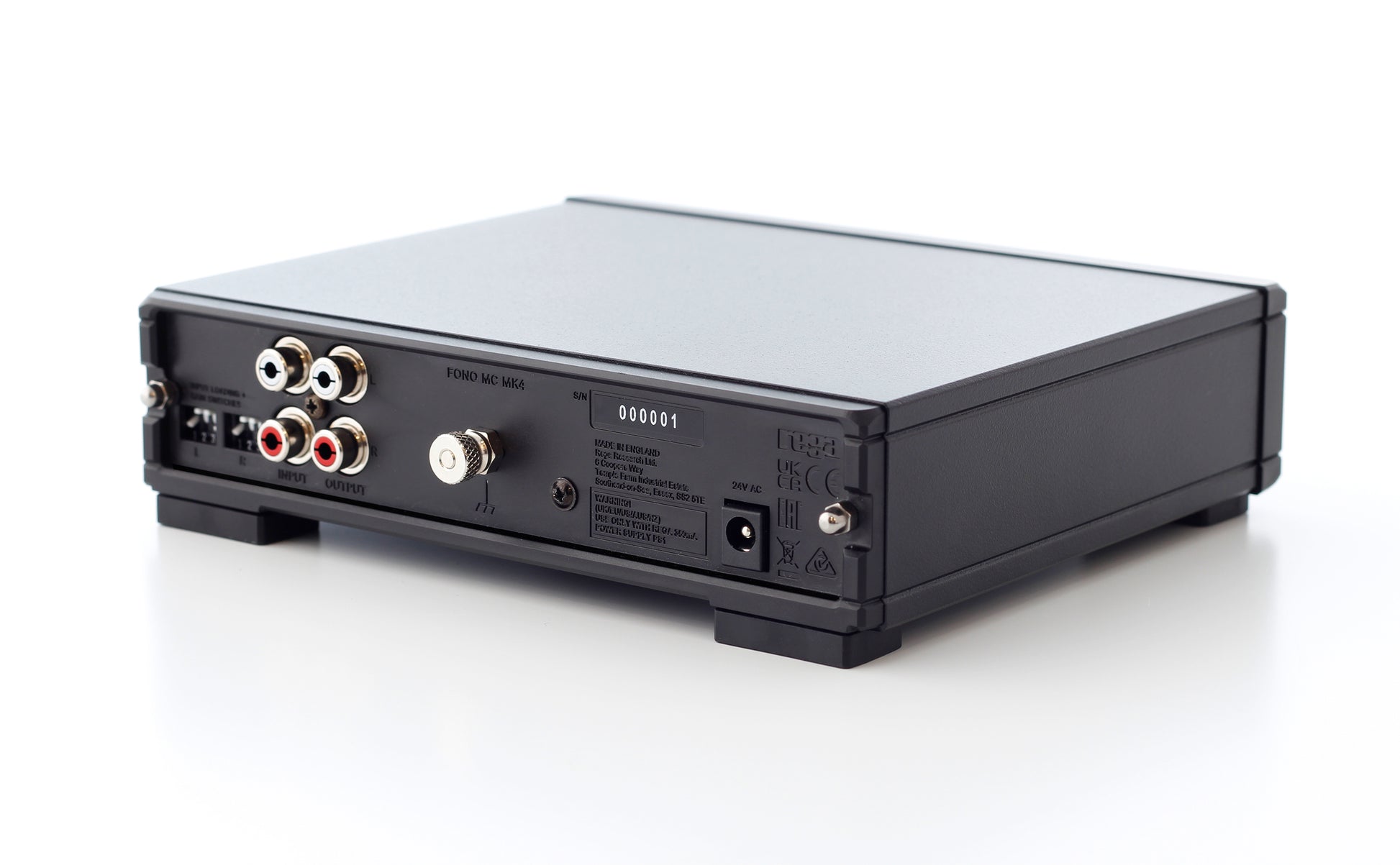

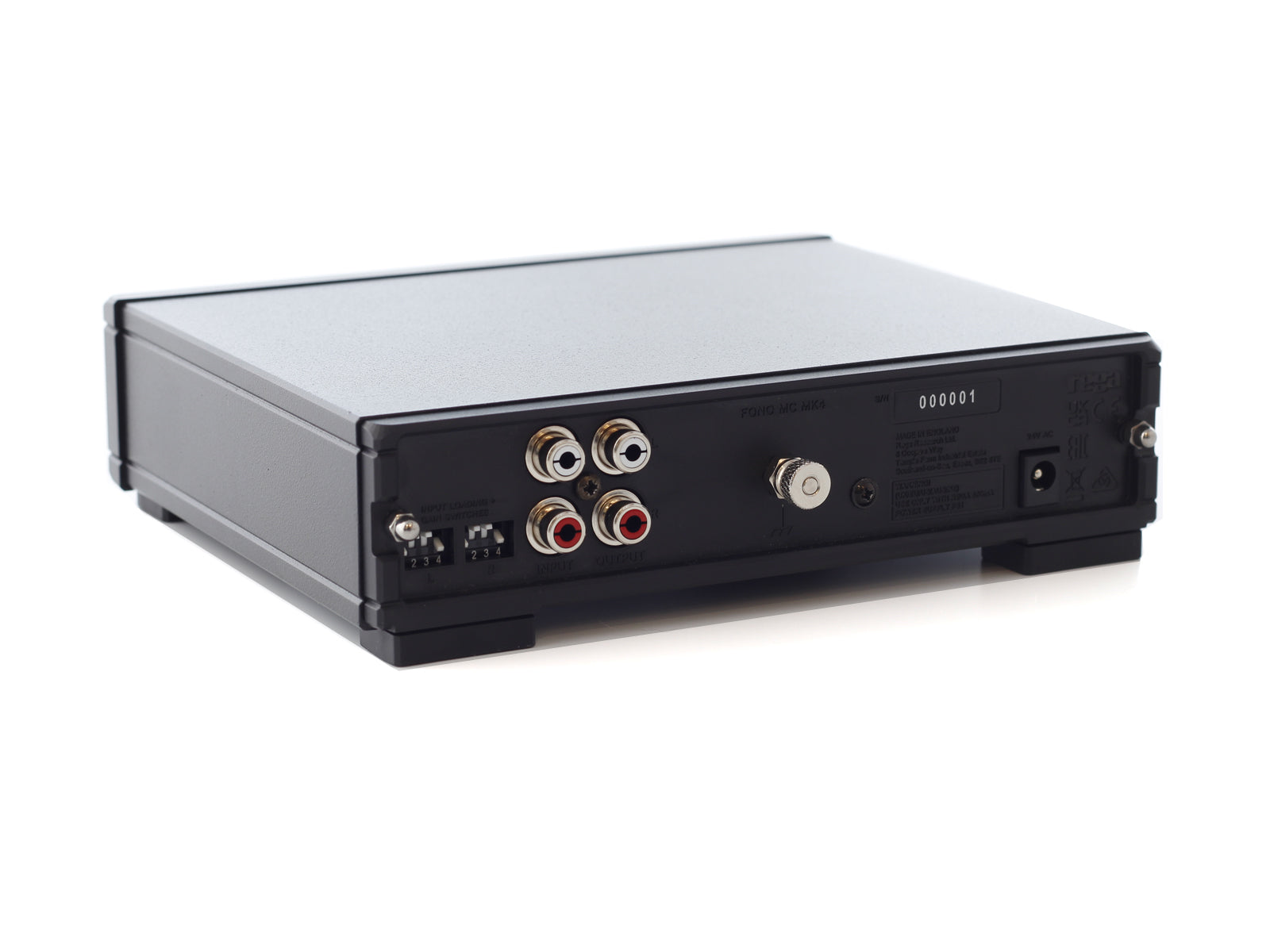

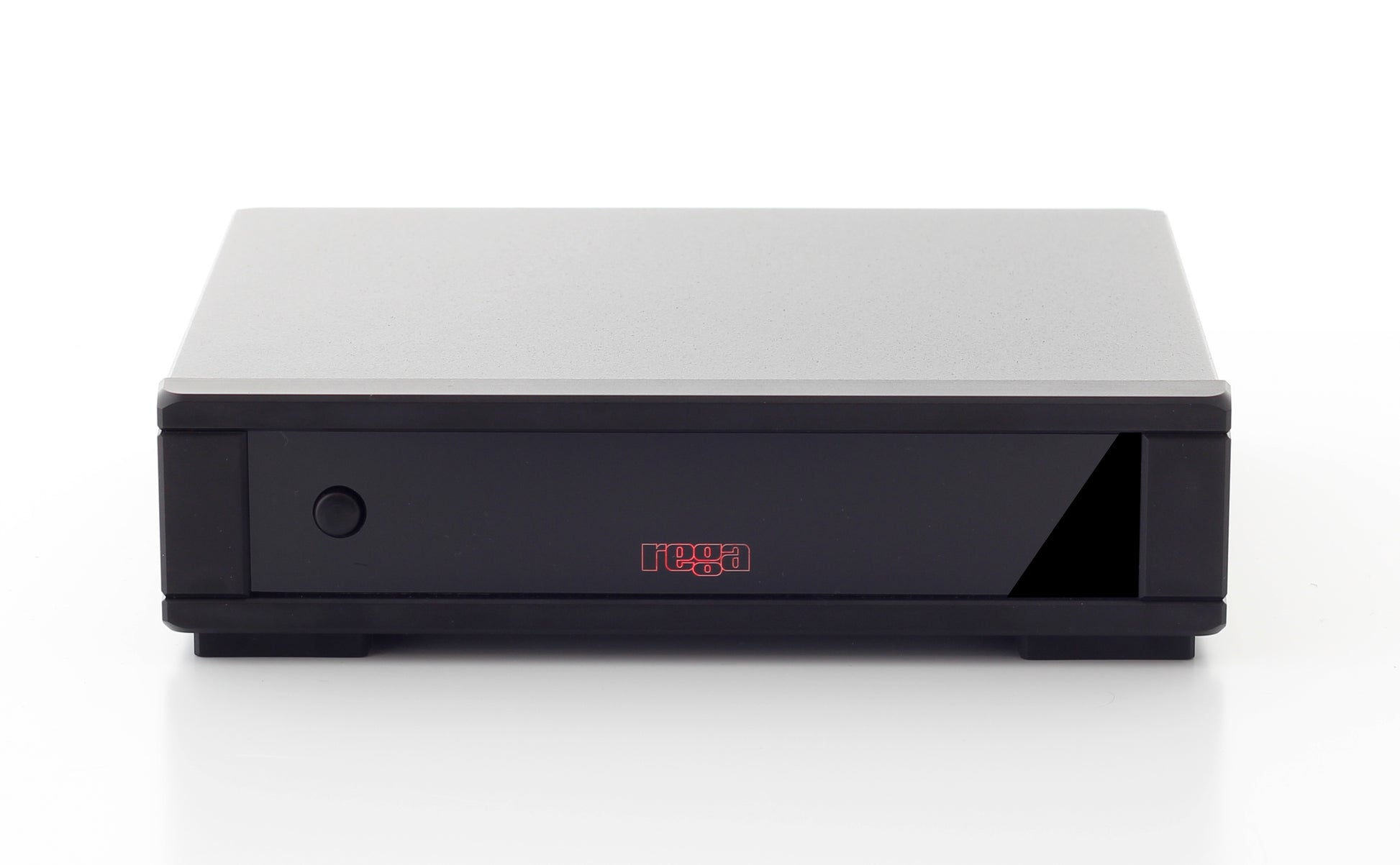

The Rega Fono MC MK4 is an exceptionally high quality MC phono stage designed to maximize the potential of any low output MC cartridge. Although specifically designed to complement the latest Rega range of moving coils you will find full adjustability for gain and loading via dip switches conveniently placed on the rear panel making the Fono MC MK4 compatible with a wide range of third party low output MC cartridges. Now housed in a brand new redesigned case to match the new Fono MM MK5and Neo MK2 and Rega’s latest range of electronic components offering a modern look guaranteed to integrate in to any hi-fi system.

Rega Fono MC MK4 Phono Stage:

Type:
Moving Coil (MC) Phono Preamplifier

General Specifications:
Gain: 72 dB
Input Sensitivity: 200 µV
Maximum Input (for 0.5% THD): 10 mV
Input Overload Margin: 34 dB
RIAA Equalization Accuracy: ±0.3 dB (20Hz - 20kHz)

Input Specifications:
Input Impedance: 100 Ohms (fixed, optimized for Rega MC cartridges)
Input Connections: Stereo RCA sockets

Output Specifications:
Output Impedance: 100 Ohms
Output Level: 775 mV (for 200 µV input)
Output Connections: Stereo RCA sockets

Performance Specifications:
Signal-to-Noise Ratio: >78 dB (A-weighted, ref. 5 mV input)
Total Harmonic Distortion: <0.005% (1 kHz, ref. 775 mV output)
Channel Separation: >70 dB (1 kHz)

Power & Build:
Power Supply: Internal, high-quality regulated
Mains Voltage: 115V or 230V (factory set, user switchable)
Power Consumption: 6 Watts
Dimensions (W x H x D): 215 x 60 x 140 mm
Weight: 1.3 kg
Casework: Steel chassis with a brushed aluminium finish top plate.
Included Accessories: Mains power cable, user manual.
