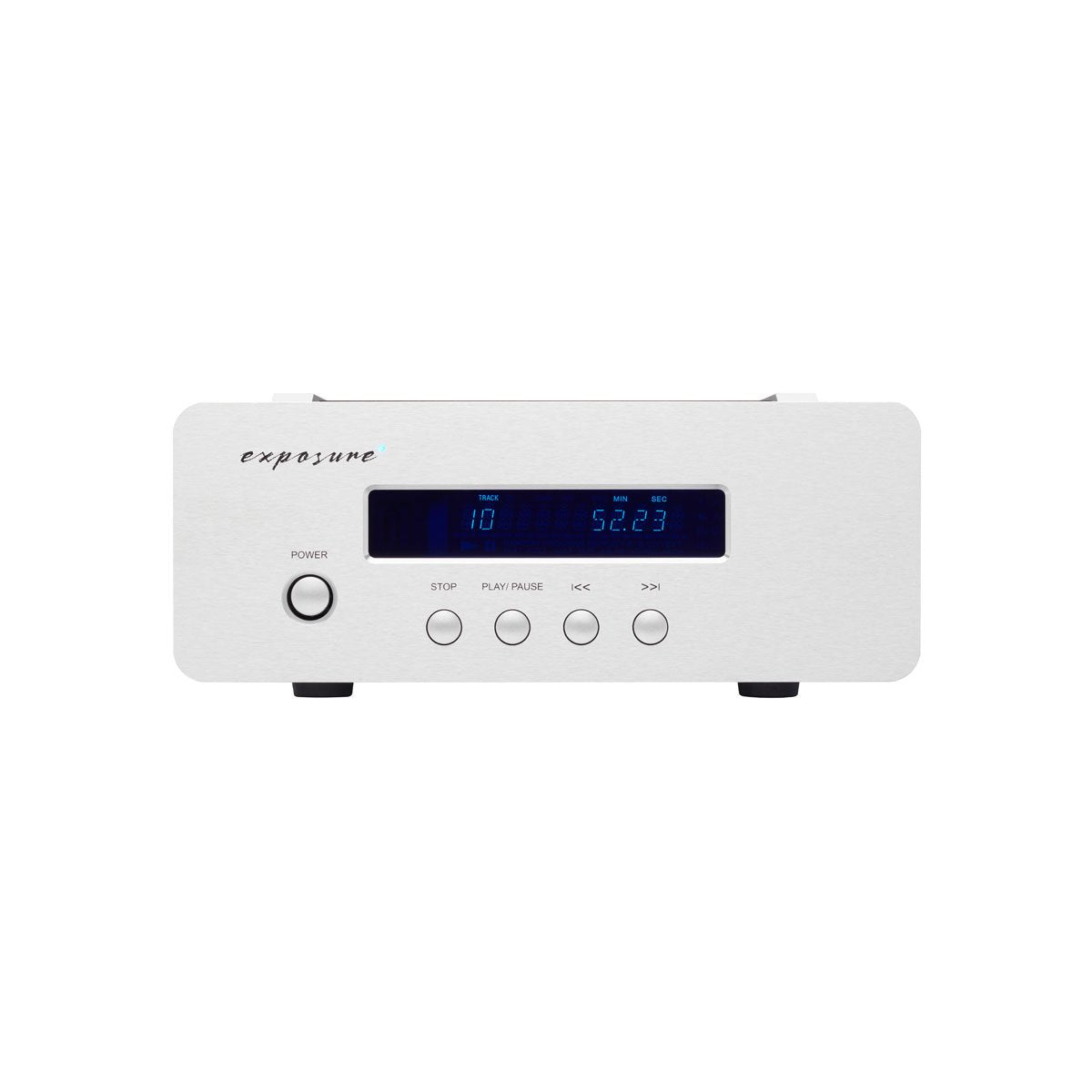

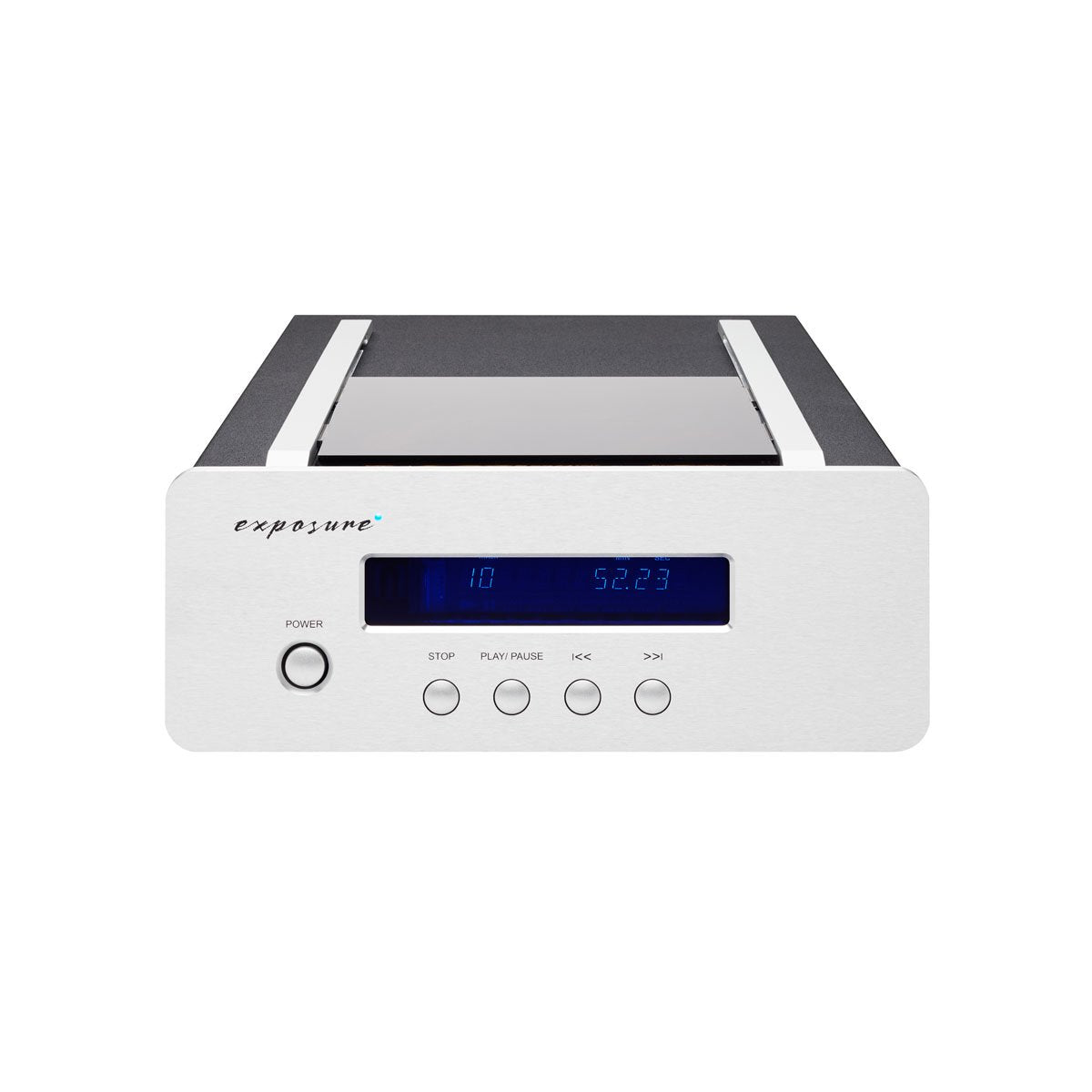

The Exposure XMCD CD Player is a half chassis, top loading, high performance audio component designed compliment any audio system. Ideally suited to match with other XM series components, the XMCD is a modern take on legacy design.
Features
PCM 1716 24 bit DAC fitted to provide very high resolution

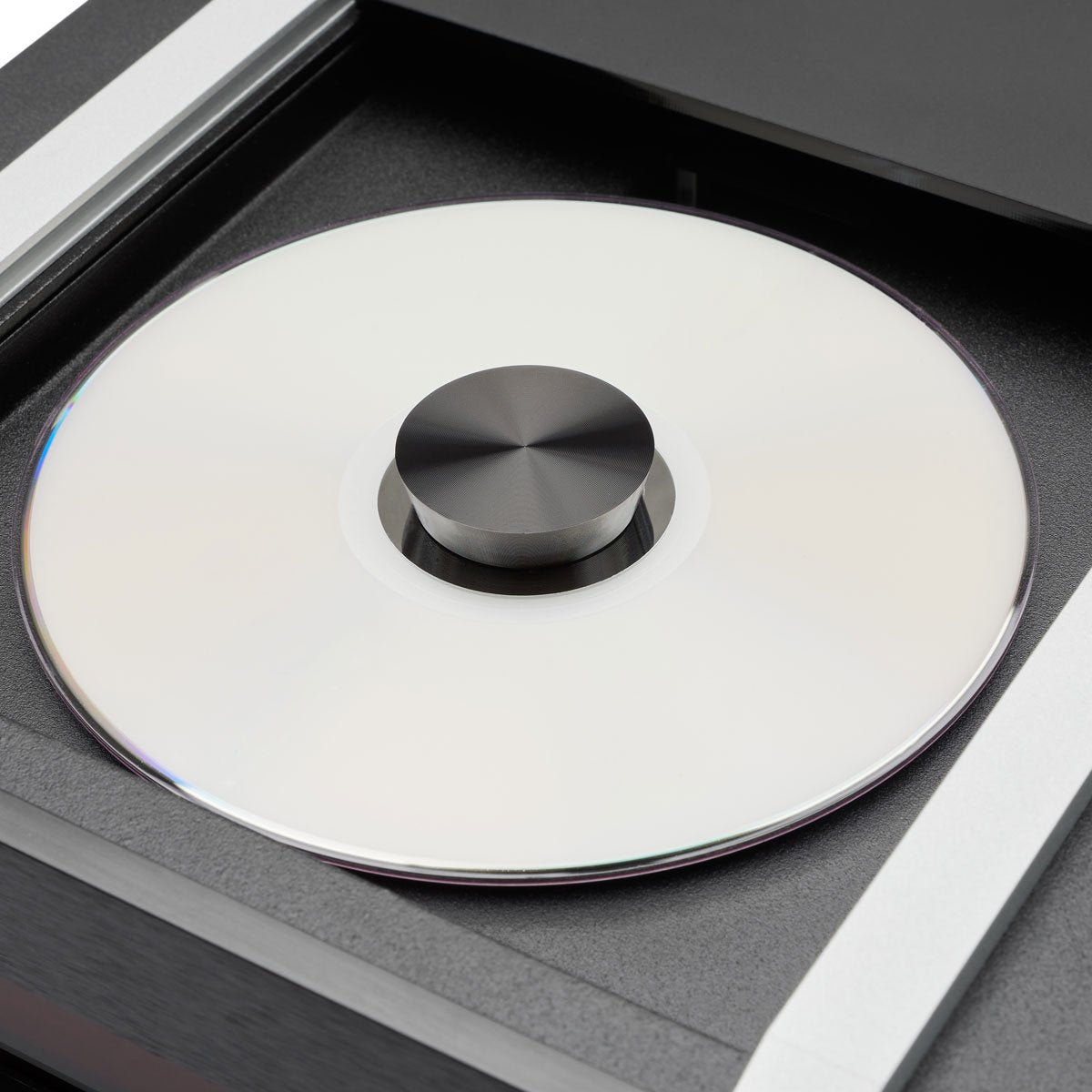

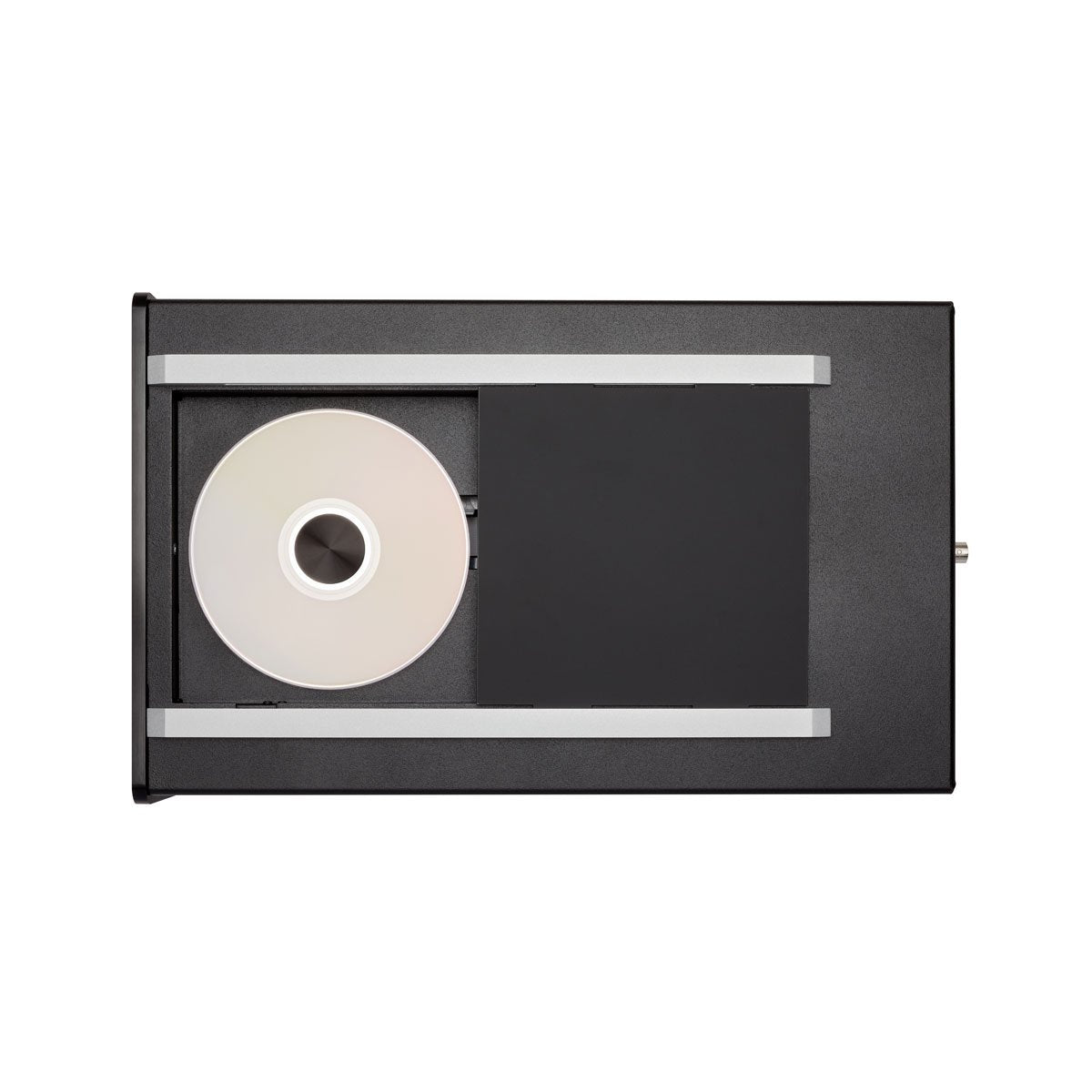

Optimized as a transport using a top loading mechanism
CD display can be turned off using the remote for improved sound quality
Highly optimized audio output circuitry with multiple stages of supply regulation
Large toroidal power transformer with separate windings for CD transport mechanism and audio stages
Employment of a high-stability crystal clock reference and dedicated, power supply regulator for the transport and audio stages to ensure low jitter performance
High quality double-sided PCBs for optimum layout and screening
All-aluminium casework and extruded front panel to control resonance and stray electro-magnetic fields
Remote control
Three year guarantee

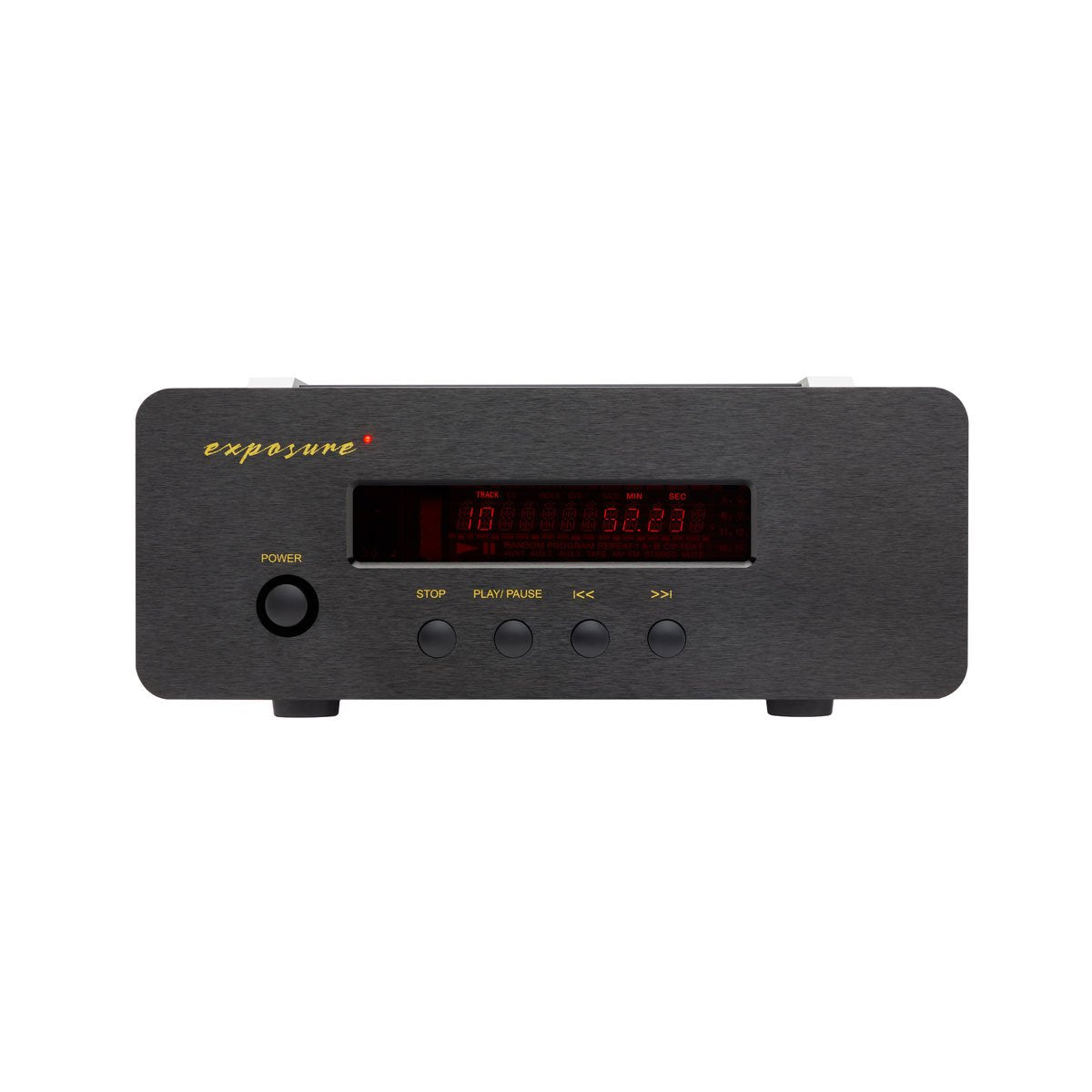

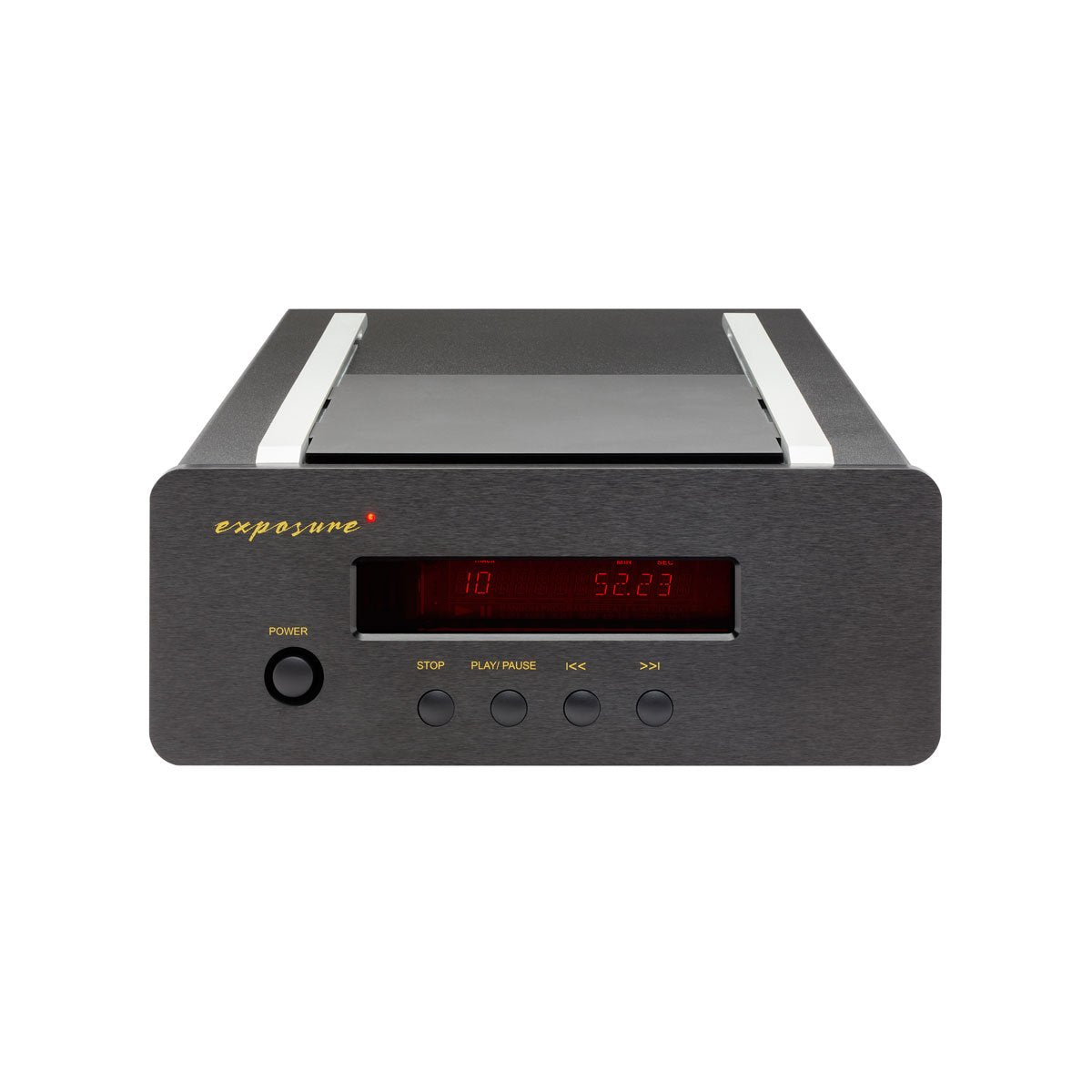

Available in black or titanium
Specifications
Outputs
-
Output Level : 2V RMS
-
Frequency Response : 20Hz - 20KHz ± 0.25dB
-
Total Harmonic Distortion : <0.008%, 20Hz - 20KHz, 0dBFs
-
Signal to Noise Ratio : >100dB, A weighted
-

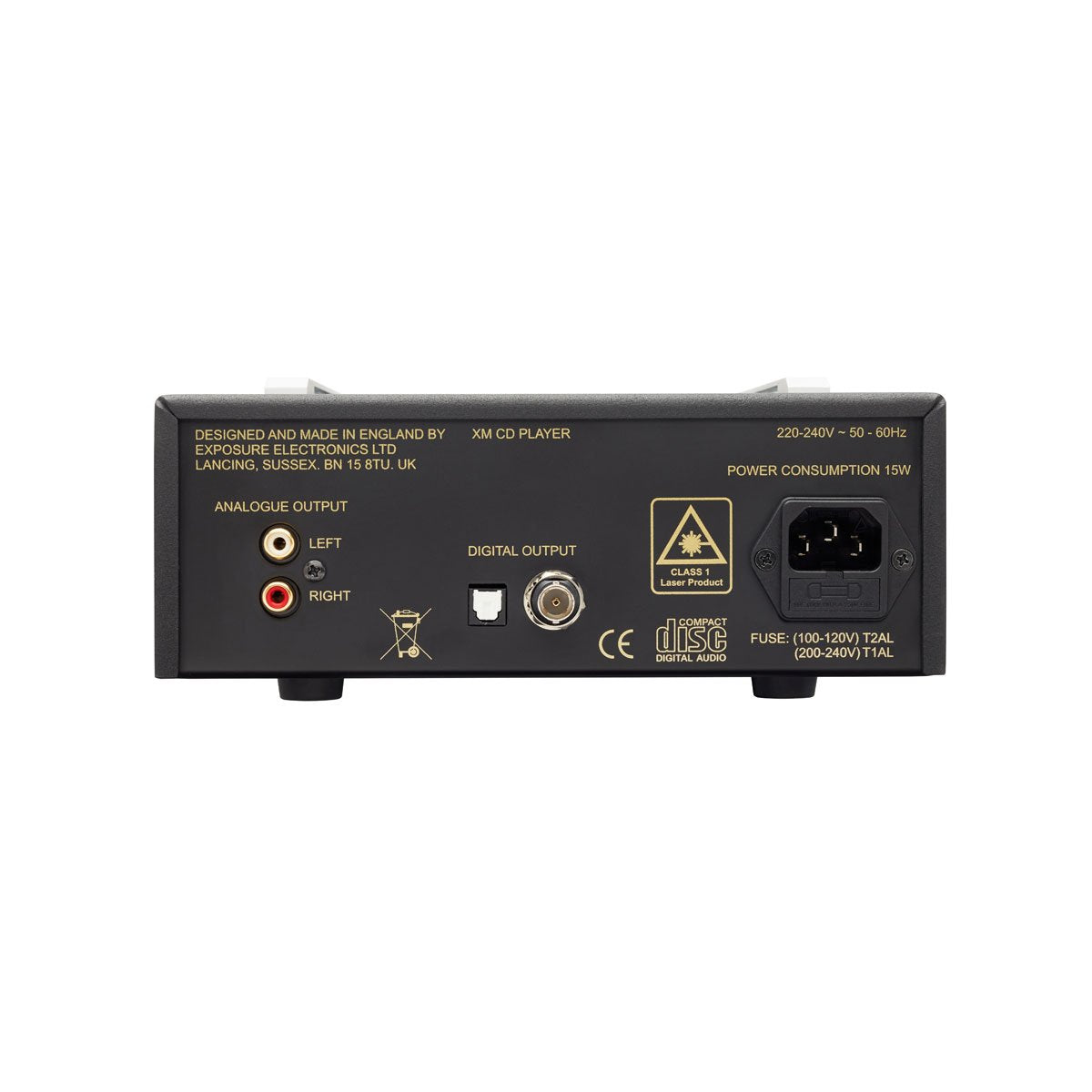

Digital Outputs : SP/DIF, Coaxial and “Toslink” Optical
General Specifications
- Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
- Power Consumption : <15W
- Dimensions (WxHxD) : 218mm x 94mm x 348mm
- Net Weight (unpacked) : 4kg
- Gross Weight (packed) : 5kg
