Features

1. Large 200VA custom made toroidal transformer for power supply
2. Multiple power supply capacitors in parallel for low ESR
3. All discrete transistor audio stages
4. High quality resistors & capacitors used in the signal path

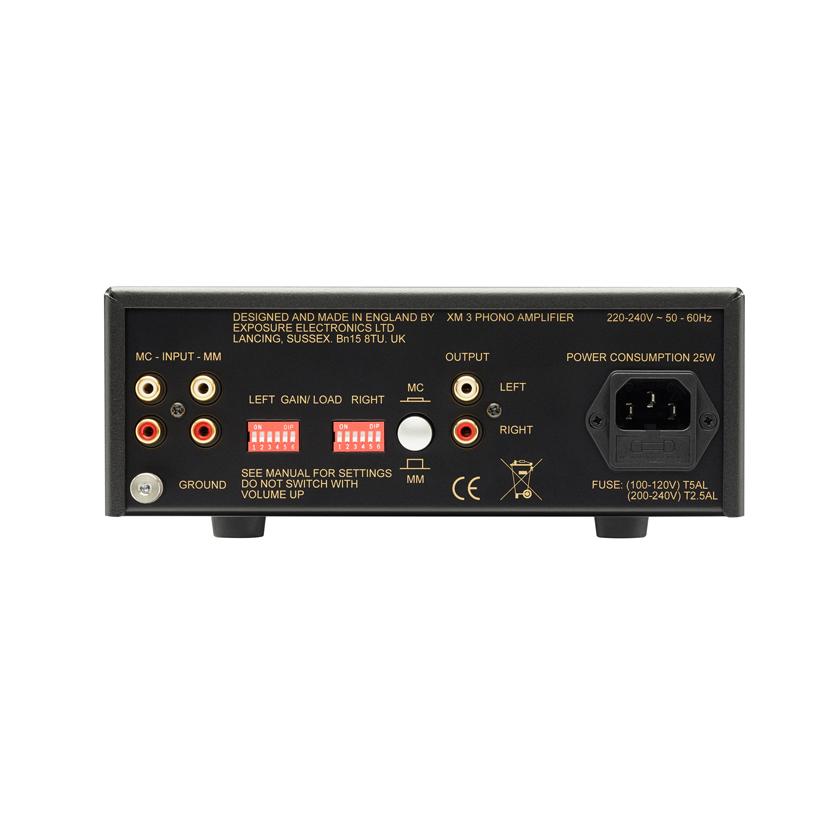

5. Separate MM & MC inputs selectable on the back panel
6. Adjustable loading & gain switches on the back panel
7. High quality all aluminium case work and extruded front panel
8. Three year guarantee

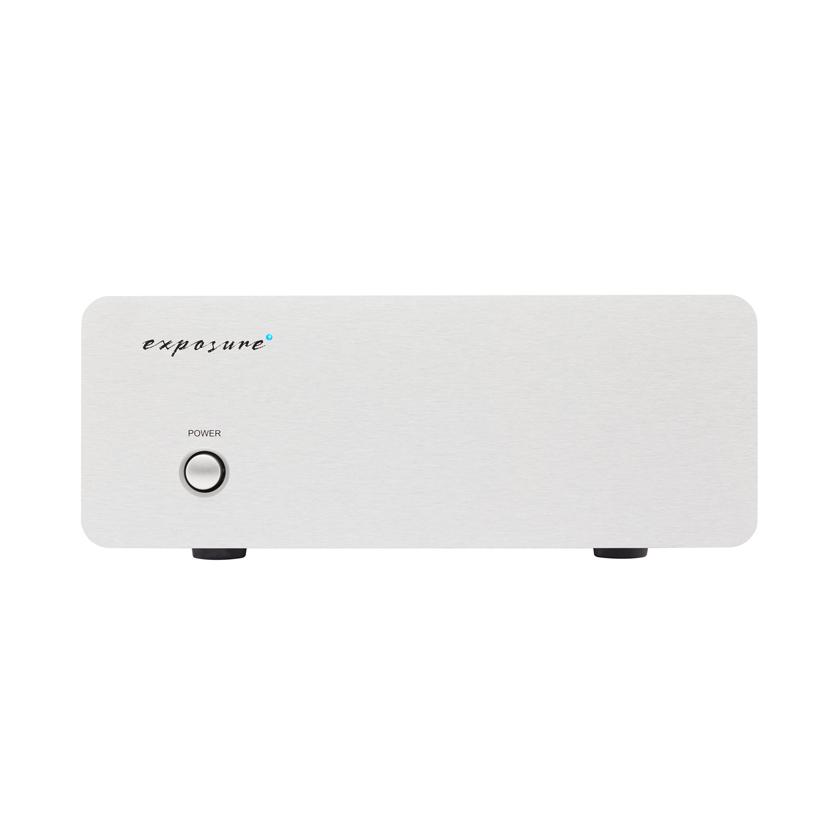

9. Available in black or titanium

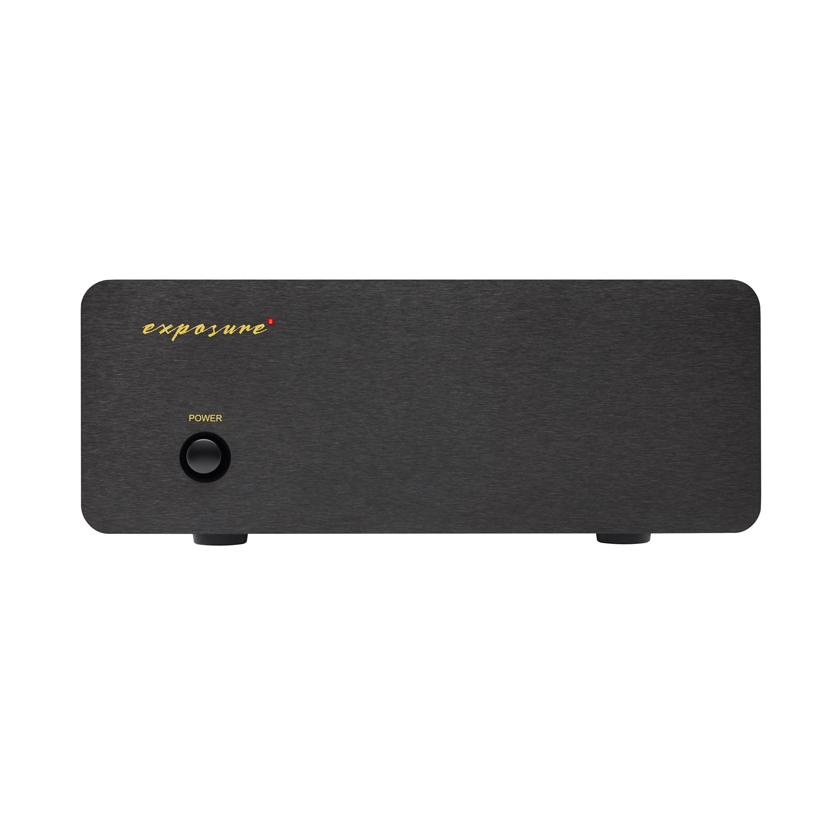

Exposure XM3 MM/MC Phono Amplifier:

Type:
Dual-Mono, Solid-State Phono Preamplifier with Separate Power Supply

Inputs & Connectivity:
Inputs: 1 x MM, 1 x MC (via gold-plated RCA sockets)
Outputs: 1 x Line Output (via gold-plated RCA sockets)
Input Sensitivity (for 500mV output): MM: 2.5mV, MC: 250µV
Input Impedance: MM: 47kΩ, MC: 100Ω (factory set, not user adjustable)
Input Capacitance: MM: 220pF (factory set, not user adjustable)

Gain & Performance:
Gain: MM: 40dB, MC: 60dB
Maximum Output: > 9V
Frequency Response: 20Hz - 20kHz (±0.5dB)
Signal-to-Noise Ratio: MM: >86dB, MC: >76dB (ref. 1mV, CCIR/ARM)
Total Harmonic Distortion: <0.005% (1kHz, 1V output)

Power Supply:
Unit: Separate, outboard "Power Pack" with toroidal transformer and regulated supply
Connection to Main Unit: Dedicated multi-pin umbilical cable
Mains Input: 100-120V / 220-240V AC, 50/60Hz (user selectable via voltage selector)

General:
Construction: Dual-mono design, fully discrete circuitry, direct signal path.
Main Unit Dimensions (W x H x D): 440 x 80 x 295 mm
Power Supply Dimensions (W x H x D): 440 x 80 x 295 mm (identical chassis)
Main Unit Weight: 5.0 kg
Power Supply Weight: 5.2 kg
Finish: Silver or Black anodized aluminum front panel and casework
Included Accessories: Power Supply Unit, umbilical cable, IEC power cable, user manual
