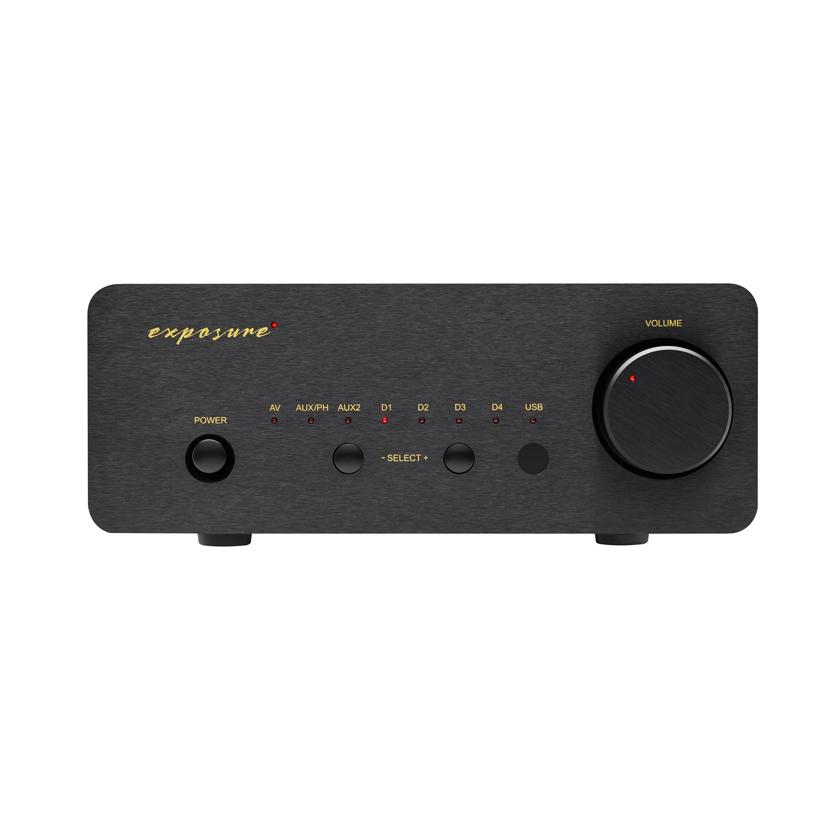

The Exposure XM5 Integrated Amplifier is the heart of a serious music system, built to deliver both power and nuance. It takes pride in its robust, dual-monaural construction, ensuring each channel is independent and dynamically potent. With a generous selection of digital and analog inputs, it welcomes everything from your turntable to high-resolution streams. The sound signature is characteristically Exposure: engaging, rhythmic, and richly detailed, with the weight and drive to bring music to life. It is a modern amplifier built on timeless hi-fi principles, designed for pure, unadulterated listening enjoyment.

Exposure XM5 Integrated Amplifier:
Type: Solid-State Integrated Stereo Amplifier with DAC
Amplifier Topology: Class A/B with Toshiba Bipolar Output Transistors

Power Output:
Rated Output Power: 60W per channel into 8Ω, 70W per channel into 8Ω (20Hz - 20kHz), 100W per channel into 4Ω

Distortion & Performance:
Total Harmonic Distortion (THD): <0.03% (20Hz - 20kHz, at 1W)
Frequency Response: 10Hz - 20kHz (±0.5dB)
Signal-to-Noise Ratio (S/N): >95dB (Line, A-Weighted), >75dB (Phono MM, A-Weighted)

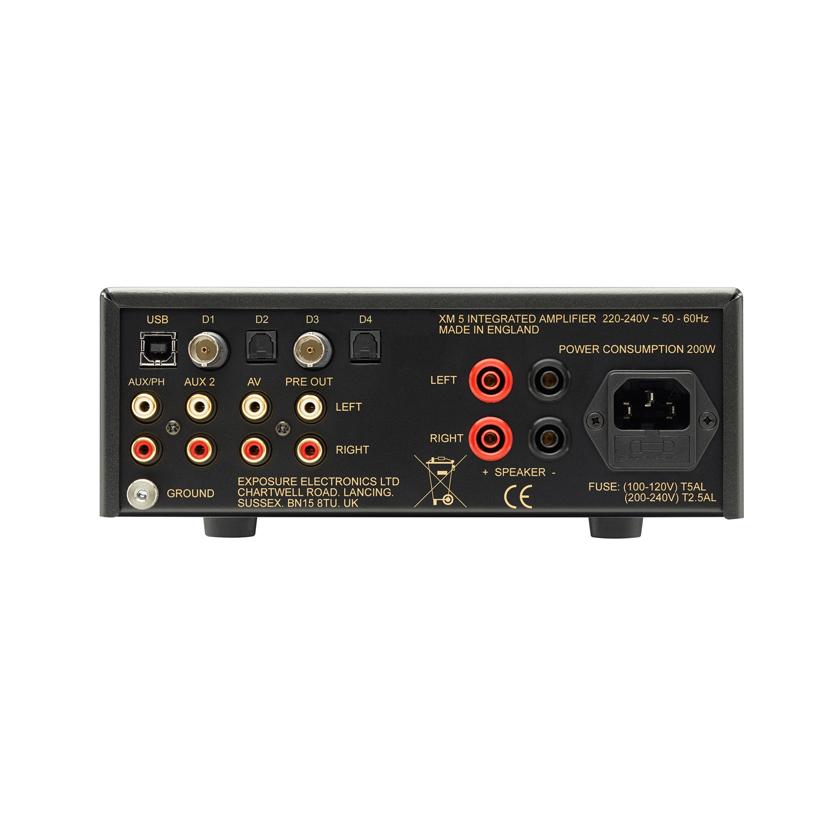

Input Section:
Analog Inputs: 1 × Line Level (RCA), 1 × Moving Magnet (MM) Phono Input (RCA), 1 × Fixed Level AV Input (RCA)
Digital Inputs: 2 × Coaxial (BNC), 2 × Optical (Toslink), 1 × USB (Class 2, with DSD support)
Input Sensitivity (Line): 300mV
Input Sensitivity (Phono MM): 2.5mV
Input Impedance (Line): 47kΩ
Input Impedance (Phono): 47kΩ, 220pF

Output Section:
Pre-Out: 1 × Pre-Out (RCA) - Separate pre-amp output
Headphone Output: 6.35mm (1/4") Jack (on front panel)
Speaker Outputs: Speaker Binding Posts

General Specifications:
Power Supply: Large 200VA custom-made toroidal power transformer
Power Consumption: 300W maximum
Dimensions (W×H×D): 430mm × 80mm × 330mm
Weight: 9 kg

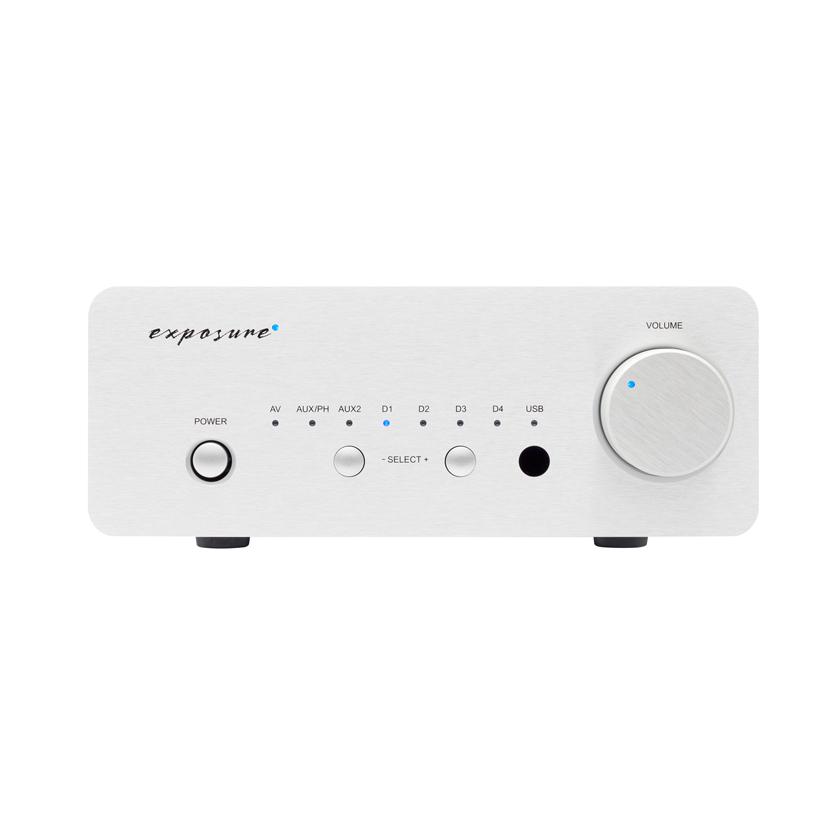

Finish: High Quality All Aluminium Casework and Extruded Front Panel (Black or Titanium)
Guarantee: Three Year Guarantee

Included Accessories:
Remote Control, Power Cable

Additional Features:
Circuit Design: Cascode circuitry utilised for improved power supply immunity
Components: High quality resistors & capacitors used in the signal path
Output Stage: Toshiba bipolar output transistors for dynamics and performance
Construction: High quality all aluminium casework and extruded front panel
USB DAC: Class 2 USB input with DSD support
