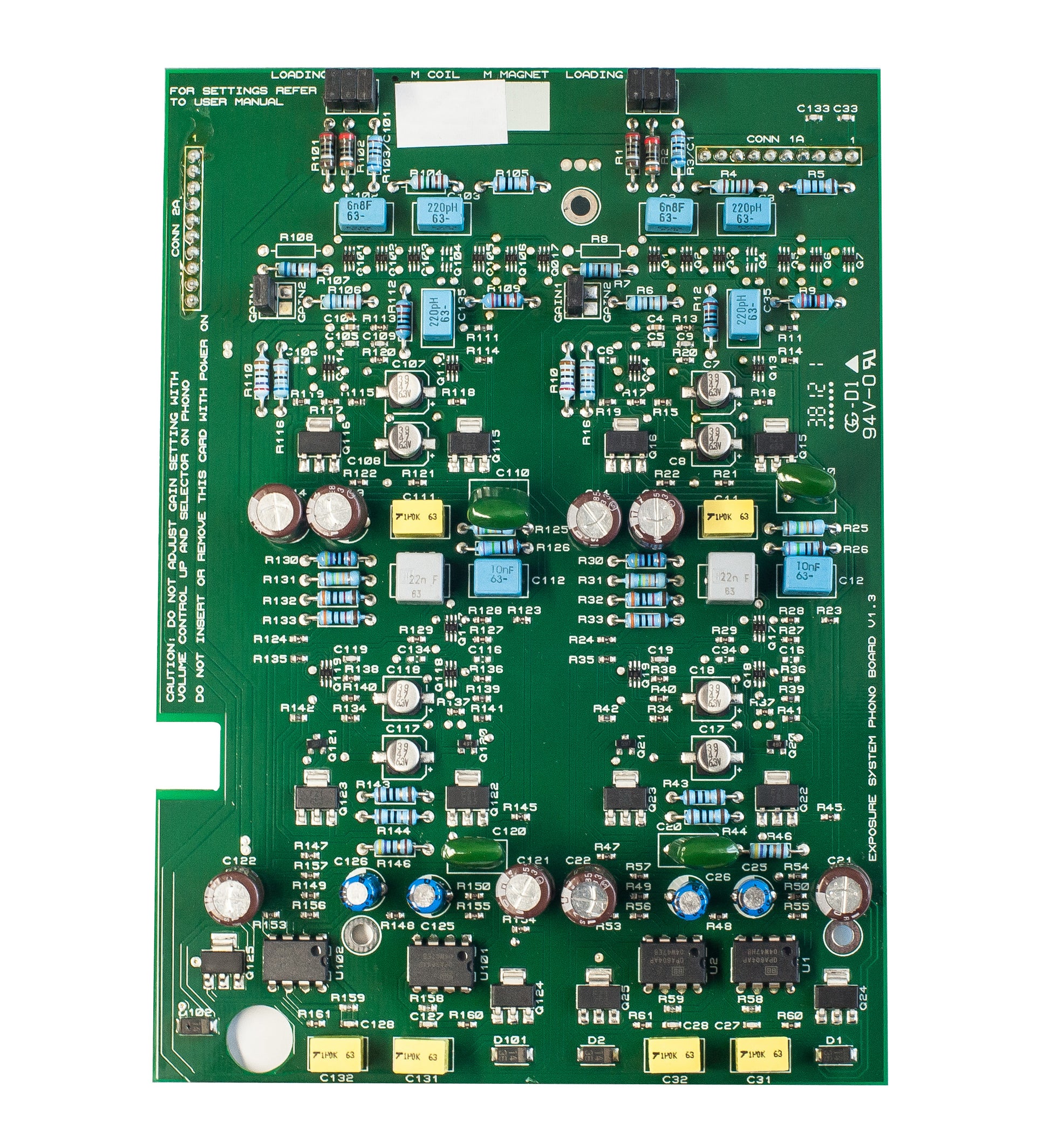

The 3510 MM/MC Phono Card can be used with 3510 integrated amplifier and the 3510 Pre Amplifier.
Easy to fit in minutes, no soldering required.
Specifications
-
- Sensitivity : 500uV (gain 1 links open) or 250uV with gain 1 links fitted
- Input Loading : 6n8 in parallel with 1K5 ohms or with jumpers fitted:
- J1 + 2 + 3 : 100 ohms
- J1 + 2 : 110 ohms
- J1 + 3 : 130 ohms
- J1 : 160 ohms
- J2 + 3 : 210 ohms
- J2 : 310 ohms
- J3 : 470 ohms
- Frequency Repsonse : +/- 0.25dB ref 1KHz 30Hz to 20KHz. With IEC roll off thereafter
