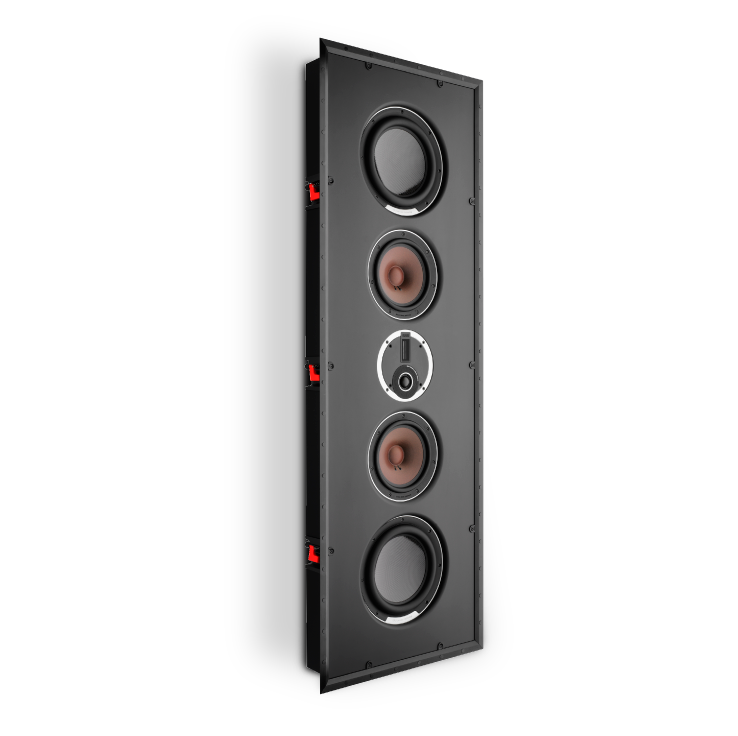

The PHANTOM S-280 is a no compromise in-wall power-house of a loudspeaker with two 8” bass/mid-range drivers, two 10” passive radiators and a rotatable hybrid tweeter module. It delivers clean, coherent, detailed, powerful and room filling sound. And still it features a slim cabinet that fits into almost any standard wall.
DALI PHANTOM S-280 SPECS
| Product series |
PHANTOM |
| Frequency Range (+/-3 dB) [Hz] |
48 - 25,000 |
| Sensitivity (2,83 V/1 m) [dB] |
89.0 |
| Nominal Impedance [ohms] |
8 |
| Maximum SPL [dB] |
112 |
| Recommended Amplifier Power [W] |
40 - 400 |
| Crossover Frequency [Hz] |
3,000 / 15,000 |
| Hybrid tweeter module, High frequency driver, Quantity |
1 x 17 x 45 mm |
| Hybrid tweeter module, High frequency driver Diaphragm type |
Ribbon
|
| High frequency driver, Quantity |
1 x 29 mm |
| High frequency driver, Diaphragm type |
Soft Textile Dome
|
| Low frequency driver, Quantity |
2 x 8" |
| Low frequency driver, Diaphragm type |
Wood Fibre Cone
|
| Low frequency passive driver, Quantity |
2 x 10" |
| Low frequency passive driver, Diaphragm type |
Carbon fibre cone
|
| Recommended Placement |
In-Wall
|
| Dimensions (HxWxD) [mm] |
1,527 x 527 x 110 |
| Cut-Out Dimensions (HxWxD) [mm] |
1,495 x 495 x 103 |
| Weight [kg] |
35.0 |
