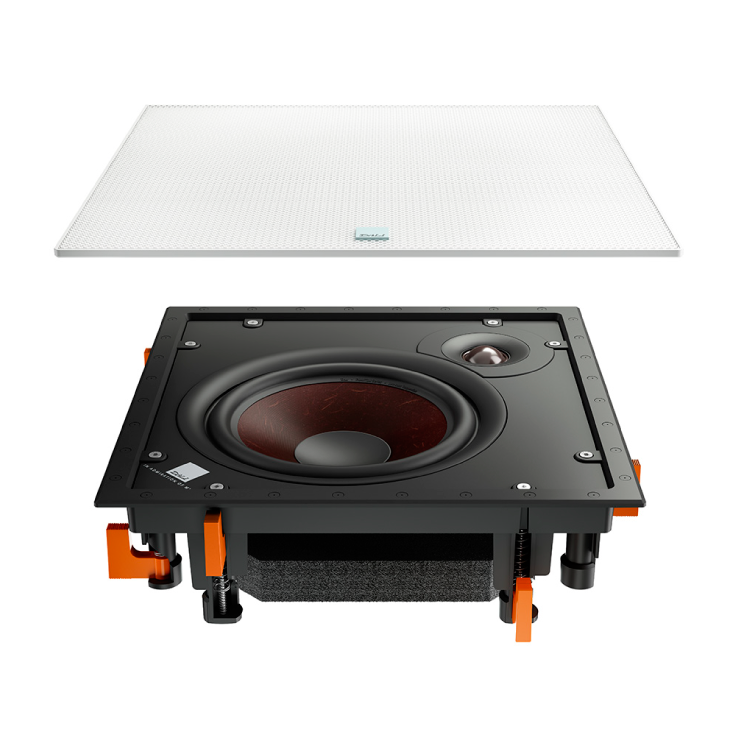

The PHANTOM H-60 in-wall speaker delivers the perfect balance between size and performance. The PHANTOM H-60 is equipped with a 6.5" woofer and designed for optimum in-wall use, but can also be mounted in the ceiling.
DALI PHANTOM H-60 SPECS
| Product series |
PHANTOM |
| Frequency Range (+/-3 dB) [Hz] |
51 - 25,000 |
| Sensitivity (2,83 V/1 m) [dB] |
89.0 |
| Nominal Impedance [ohms] |
6 |
| Maximum SPL [dB] |
107 |
| Recommended Amplifier Power [W] |
30 - 150 |
| Crossover Frequency [Hz] |
1,900 |
| High frequency driver, Quantity |
1 x 28 mm |
| High frequency driver, Diaphragm type |
Soft Textile Dome
|
| Low frequency driver, Quantity |
1 x 6½" |
| Low frequency driver, Diaphragm type |
Wood Fibre Cone
|
| Enclosure type |
Open back
|
| Recommended Working Volume |
10 - 35 L |
| Connection Input |
Single Wire
|
| Recommended Placement |
In-Wall
In-Ceiling
|
| Dimensions (HxWxD) [mm] |
300 x 300 x 95 |
| Cut-Out Dimensions (HxWxD) [mm] |
264 x 264 |
| Weight [kg] |
2.60 |
| Recommended Volume [litre] |
10 - 35 |
| Accessories Included |
3mm Allen Key
Cut-Out Template
Logo Badge
Manual
|
