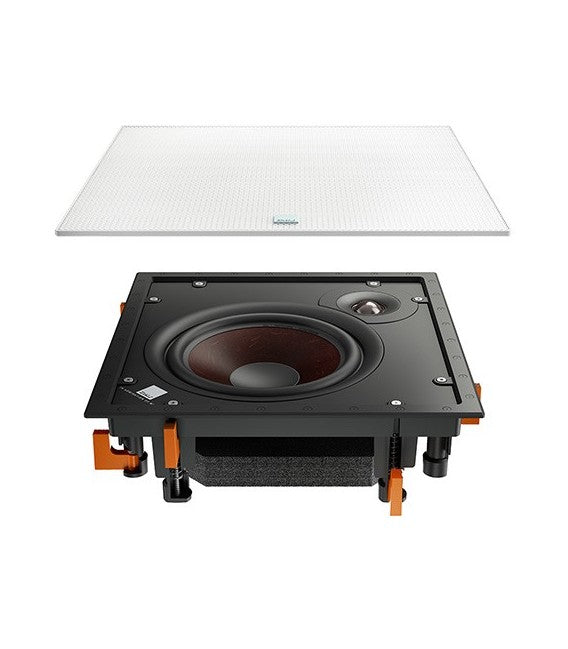

The PHANTOM H-120 has an unprecedented 12” woofer to deliver deep and powerful bass. The H-120 is perfect for installations where normal floor-standing speakers or an external subwoofer cannot be used, or when deep, room filling bass is essential.
DALI PHANTOM H-120 SPECS
| Product series | PHANTOM |
|---|---|
| Frequency Range (+/-3 dB) [Hz] | 32 - 25,000 |
| Sensitivity (2,83 V/1 m) [dB] | 90.0 |
| Nominal Impedance [ohms] | 4 |
| Maximum SPL [dB] | 112 |
| Recommended Amplifier Power [W] | 50 - 400 |
| Crossover Frequency [Hz] | 850 / 4,000 |
| High frequency driver, Quantity | 1 x 28 mm |
| High frequency driver, Diaphragm type | Soft Textile Dome |
| Low frequency driver, Quantity | 1 x 5.25" / 1 x 12" |
| Low frequency driver, Diaphragm type | Wood Fibre Cone |
| Enclosure type | Open back |
| Recommended Working Volume | 50 - 100 L |
| Connection Input | Single Wire |
| Recommended Placement | In-Wall In-Ceiling |
| Dimensions (HxWxD) [mm] | 471 x 471 x 170 |
| Cut-Out Dimensions (HxWxD) [mm] | 445 x 445 |
| Weight [kg] | 9.00 |
| Accessories Included | 3mm Allen Key Cut-Out Template Logo Badge Manual |
