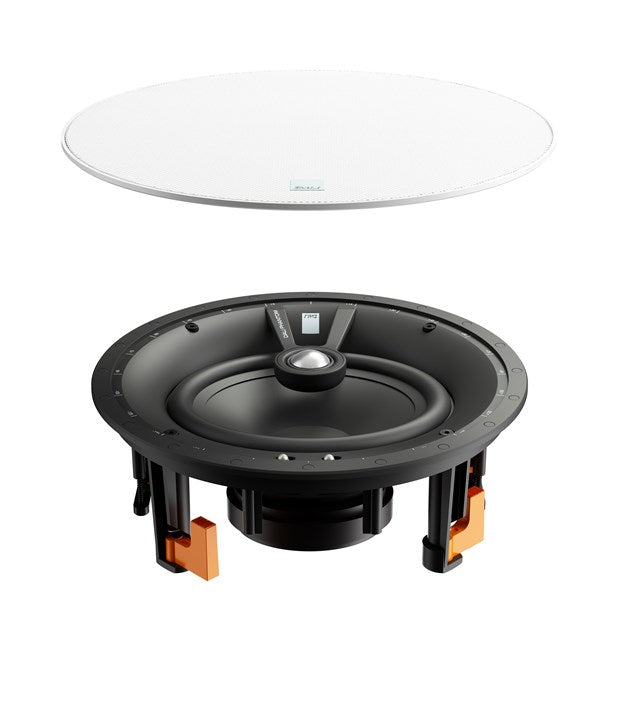

With the DALI PHANTOM E-80, it’s all about big sound. Drawing on every part of its 8” woofer, it will fill even very large rooms with sound, while keeping the bass under control. The PHANTOM E-80 is equipped with a 8" woofer and designed for optimum in-ceiling use, but can also be mounted in-wall.
DALI PHANTOM E-80 SPECS
| Product series | PHANTOM |
|---|---|
| Frequency Range (+/-3 dB) [Hz] | 49 - 25,000 |
| Sensitivity (2,83 V/1 m) [dB] | 89.5 |
| Nominal Impedance [ohms] | 6 |
| Maximum SPL [dB] | 107 |
| Recommended Amplifier Power [W] | 30 - 150 |
| Crossover Frequency [Hz] | 3,200 |
| High frequency driver, Quantity | 1 x 28 mm |
| High frequency driver, Diaphragm type | Soft Textile Dome |
| Low frequency driver, Quantity | 1 x 8" |
| Low frequency driver, Diaphragm type | Polypropylene Cone |
| Enclosure type | Open back |
| Recommended Working Volume | 10 - 100 L |
| Connection Input | Single Wire |
| Recommended Placement | In-Wall In-Ceiling |
| Functions | Focus / Distributed Normal / HF + Tilt |
| Dimensions (ØxD) [mm] | 294 x 106 |
| Cut-Out Dimensions (ØxD) [mm] | Ø261 |
| Weight [kg] | 2.36 |
| Accessories Included | Cut-Out Template Logo Badge Manual |
| Optional Accessories | Square Grille |
