Description
Five years since the introduction of ULTIMA, Chord Electronics’ most accomplished amplifier topology in its history, founder/owner John Franks has trickled the technology down into a full-width integrated amplifier for the first time, setting new performance standards for single-box amplification.

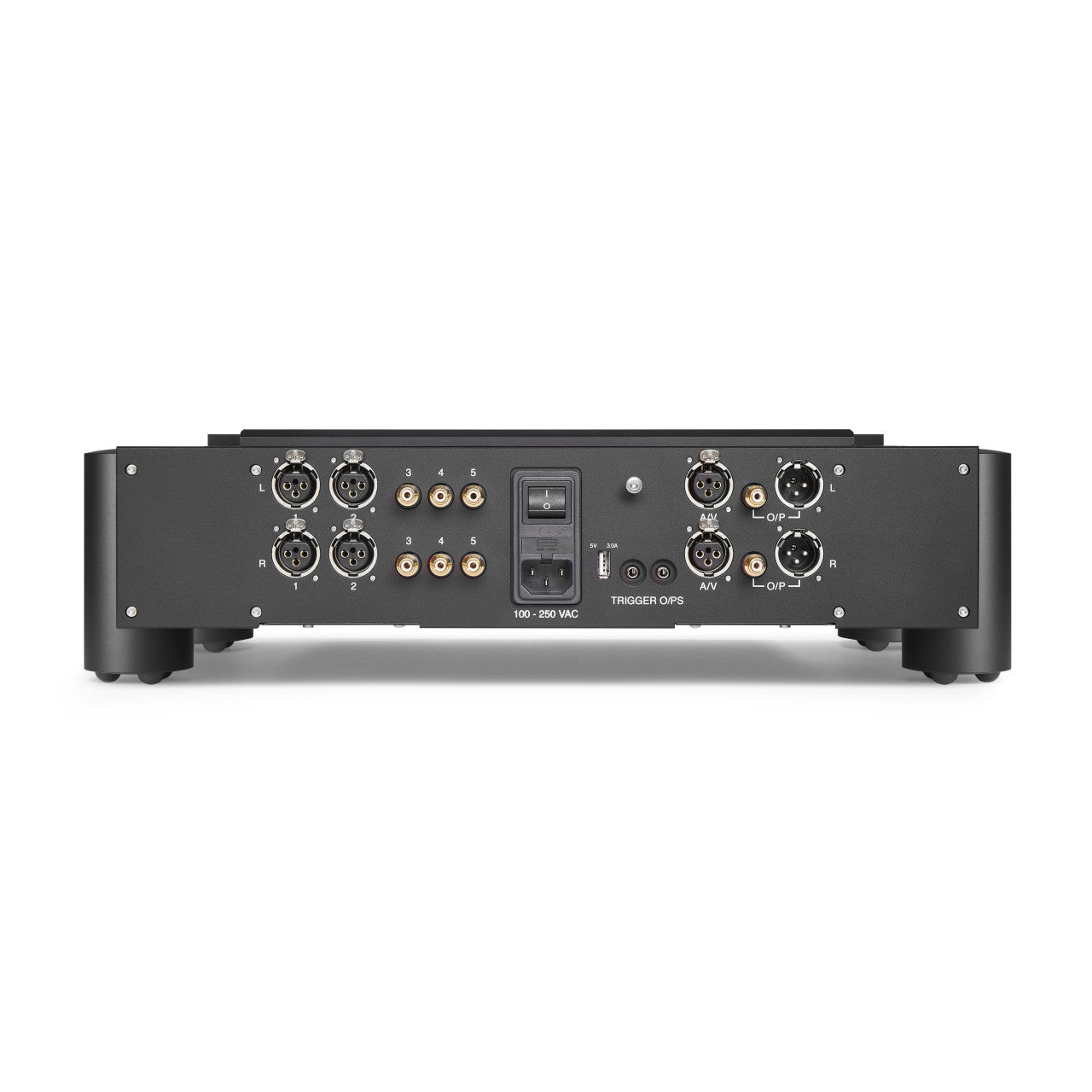

Inputs: 2x stereo balanced XLR inputs, 3x stereo unbalanced RCA
Outputs: 1x stereo XLR, 1x stereo RCA and 1x 5 V charging USB Type-A port
1x stereo balanced XLR AV bypass input
1 x 12 V trigger output/input
Key Features
All-new design
Dual feed-forward error correction
AV bypass
Proprietary MOSFET
HF Switch mode power supply
Fully Balanced Circuitry
Included Top Light Ring
Solid Aluminium Chassis
Specifications
Frequency response
10 Hz-200 kHz +/- 3 dB
THD
0.002 % 20Hz-20 kHz
Signal to noise ratio
-105 dB on all inputs
Input impedance
100 kΩ
Output impedance
560 Ω
Input maximum voltage
10 V RMS
Output maximum voltage
17 V RMS
Gain
x1
Channel separation
100 dB
Operation voltage
80-250 V AC auto-switching
Power consumption
40 W
Dimensions with included Integra legs:
13 cm(H) x 48 cm(W) x 34 cm(D)
Dimensions with optional side blocks (can not be stacked):
10 cm(H) x 42 cm(W) x 34 cm (D)
Weight:
12.7 kg
