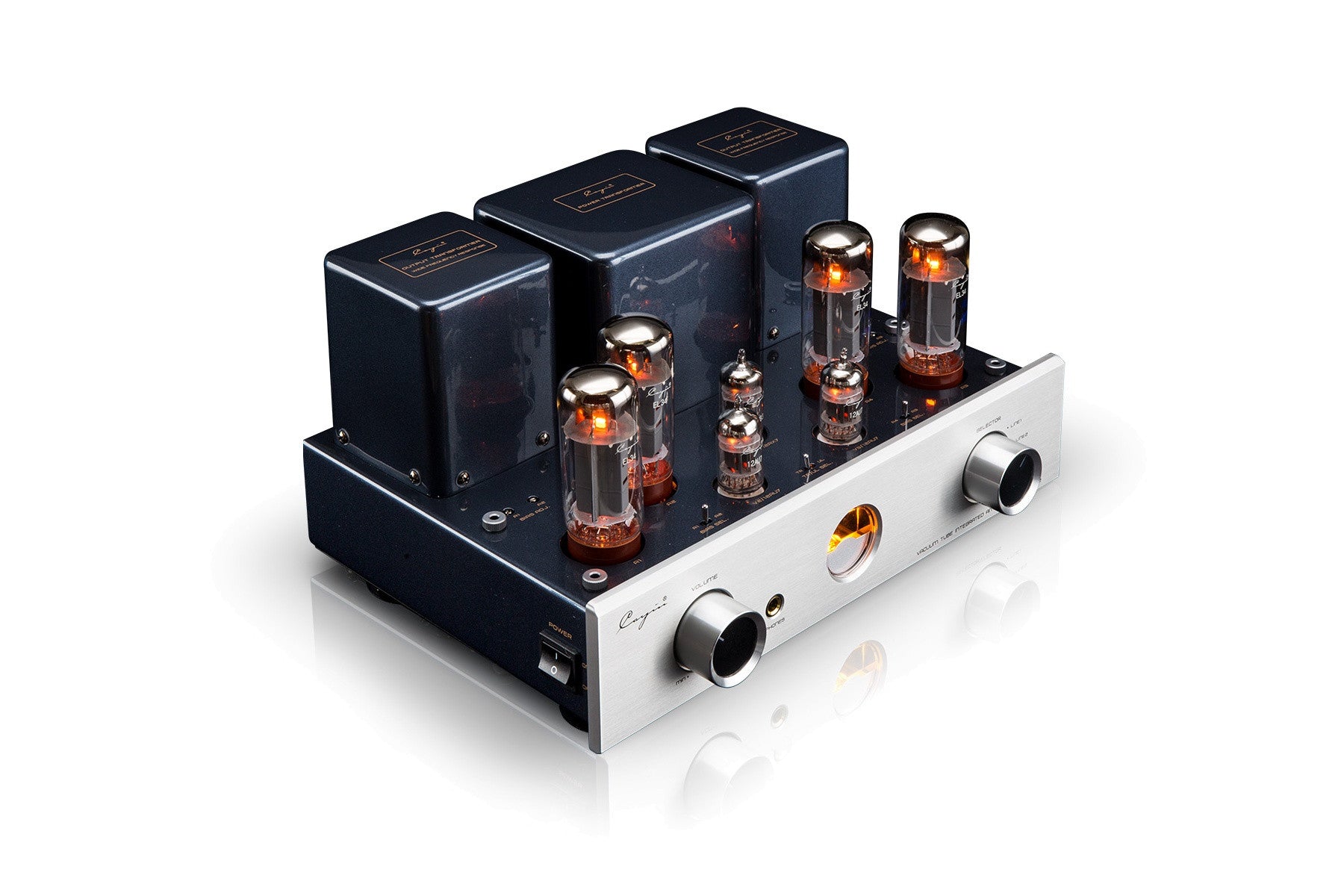

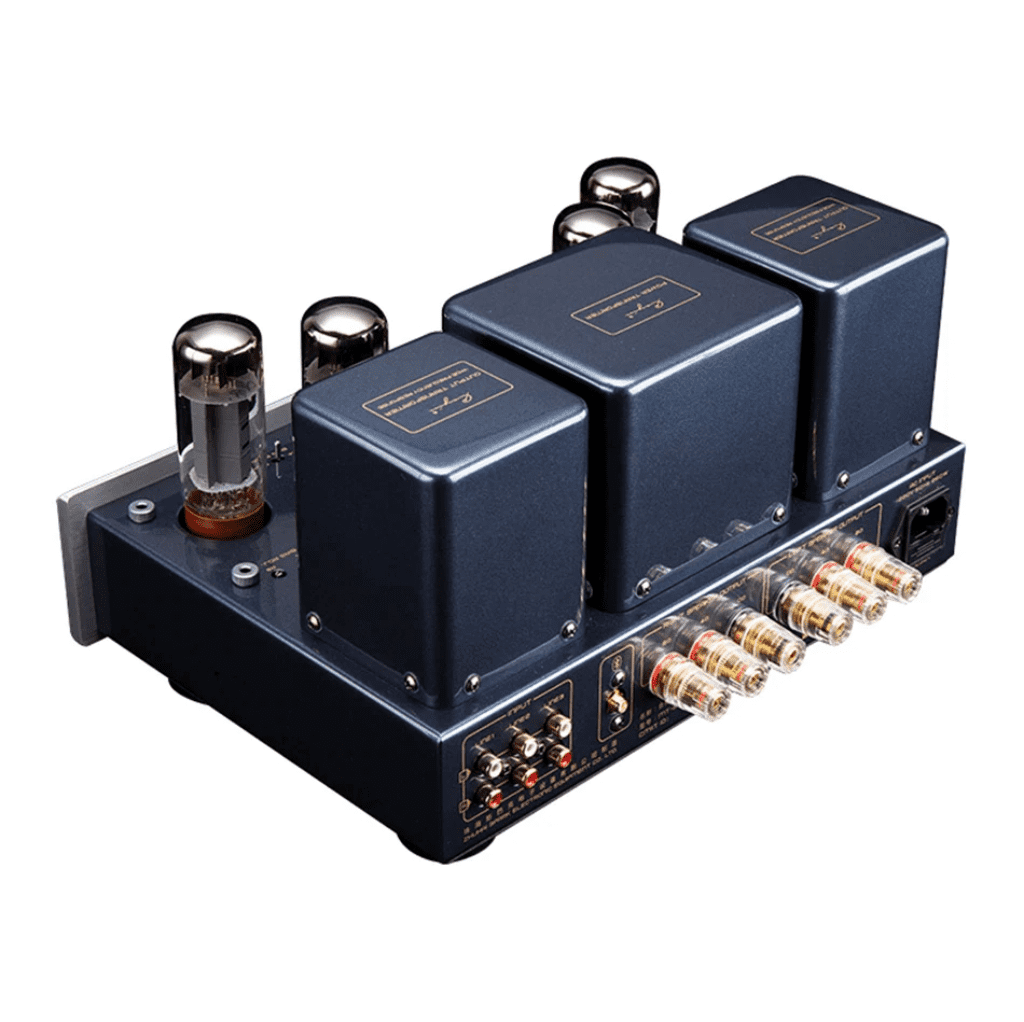

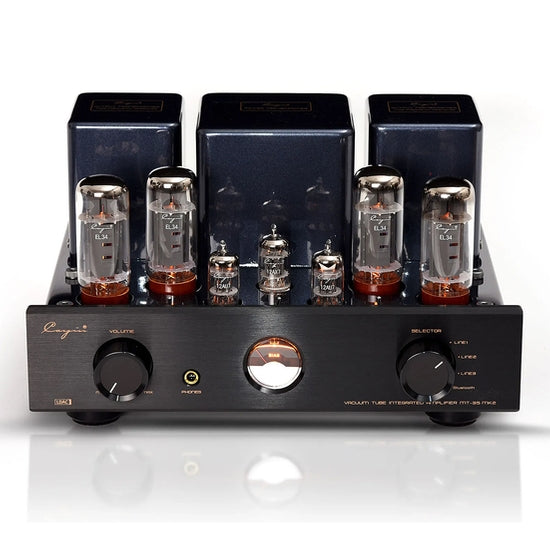

Cayin MT35 Mk3 Tube Integrated Amplifier:
Type: Tube Integrated Stereo Amplifier with Bluetooth
Amplifier Topology: Class AB, Triode and Ultra-linear modes
Power Output:
Ultra-linear Mode: 35W per channel
Triode Mode: 18W per channel
Rated Output (both modes): 35W + 35W (UL), 18W + 18W (Triode)
Distortion & Performance:
Total Harmonic Distortion (THD): ≤1% (1kHz, 30W)
Frequency Response: 20Hz - 20kHz (±3dB)
Signal-to-Noise Ratio (S/N): ≥90dB (A-Weighted)
Input Sensitivity: 300mV
Input Impedance: 100 kΩ
Output Impedance: 4Ω, 8Ω
Input Section:
Analog Inputs: 3 × Line Level (RCA)
Wireless Input: Bluetooth
Input Sensitivity (Line): 300mV
Input Impedance (Line): 100 kΩ
Bluetooth Section:
Bluetooth Version: 5.0
Bluetooth Chip: Qualcomm QCC3031
Supported Audio Codecs: SBC, AAC, LDAC, UAT
Output Section:
Speaker Outputs: Binding Posts (4Ω, 8Ω)
Headphone Output: 6.35mm (1/4") Jack (on front panel)
Tube Complement:
Tubes: 5BK7A × 3, EL34 × 4
General Specifications:
Power Consumption: 280W
Dimensions (W×D×H): 326mm × 272mm × 184mm (12.9" × 10.7" × 7.3")
Net Weight: 13.5 kg (29.9 lbs)
Power Supply: AC 110V / 220V, 50Hz / 60Hz
Included Accessories:
Remote Control, Power Cable, User Manual (Specific accessories to be confirmed with manufacturer)
