DIGITISE YOUR VINYL COLLECTION

Offering superb measured and sonic performance, NAD’s two simple solutions, the PP 4 Digital Phono/USB Preamplifier makes it easy to add phono to many of today’s stereo amplifiers and AV receivers that have either eliminated the phono input or included a low quality circuit for attaching your turntable. As part of NAD’s commitment to the environment, the PP 4 features a more efficient “green” power supply that reduces power consumption. The PP 4 goes one step further with a USB interface, shielded USB cable and recording level control which reduces noise and improves the analogue-to-digital conversion process. The PP 4’s Auto Power Down feature saves energy by automatically powering the PP 4 to OFF when not in use.

Our PP 4 Digital Phono/USB Preamplifier enables you to digitise your treasured vinyl collections to a PC or Mac. It features inputs for both MM (moving magnet) and MC (moving coil) types for a wide variety of phono cartridges, and there is a line input to allow for the transfer of cassette tapes. The PP 4 also includes VinylStudio Lite Software for ripping LPs and burning audio CDs. The PP 4 Phono-to-USB Preamp offers a complete hardware and software solution with exceptional flexibility to record from LP or tape.

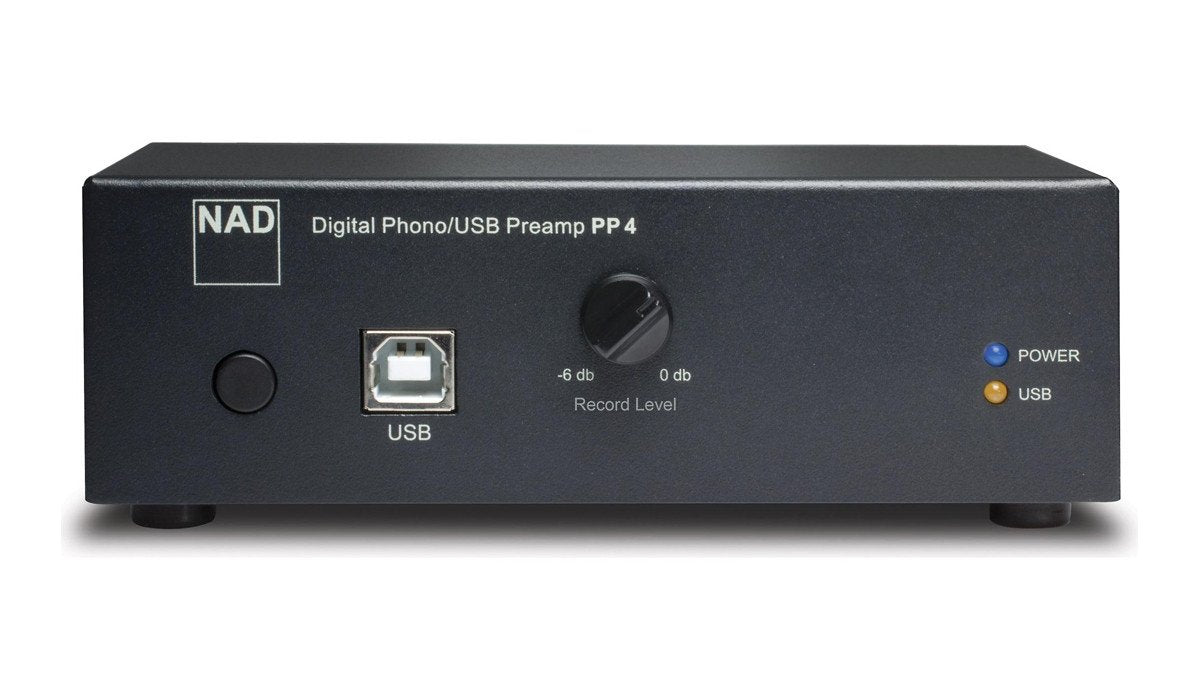

NAD PP-4 USB Digital Phono/USB Preamplifier:

Type:
Hybrid Phono Preamp (MM/MC) with Analog-to-Digital Converter (ADC) and USB output

General Specifications:
Phono Stage Type: Solid-state, moving magnet (MM) and moving coil (MC)
Supported Cartridge Types: MM, MC (High Output)
USB Function: 24-bit/96 kHz Analog-to-Digital (A/D) conversion for computer recording

Input Specifications:
Input Connections: 1 x Stereo RCA (Phono)
Input Impedance (MM): 47 kΩ
Input Impedance (MC): 100 Ω
Input Capacitance: 220 pF
Sensitivity (for 500 mV Output): MM: 4.5 mV, MC: 450 µV

Output Specifications:
Analog Output: 1 x Stereo RCA (Line-level)
Digital Output: 1 x USB Type-B (for connection to computer)
Output Level (Nominal): 500 mV
Output Impedance: 1 kΩ

Performance Specifications:
Gain:
MM: 35 dB
MC: 55 dB
RIAA Equalization Accuracy: ±0.5 dB (20 Hz - 20 kHz)
Signal-to-Noise Ratio (A-weighted, ref. 500 mV out):
MM: >85 dB
MC: >75 dB
Total Harmonic Distortion (THD): <0.01% (1 kHz, 500 mV output)
Maximum Input Level (MM, 1 kHz): 80 mV
Subsonic Filter: 15 Hz, 6 dB/octave

USB Audio Specifications (ADC):
Sampling Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Bit Depth: 24-bit
USB Standard: USB 2.0, Audio Class 1.0 (Plug & Play, no drivers required for most OS)

Power & Physical Specifications:
Power Supply: External 12 V DC wall adapter (included)
Dimensions (W x H x D): 70 x 45 x 175 mm (2.76" x 1.77" x 6.89")
Weight: 0.5 kg (1.1 lbs)
