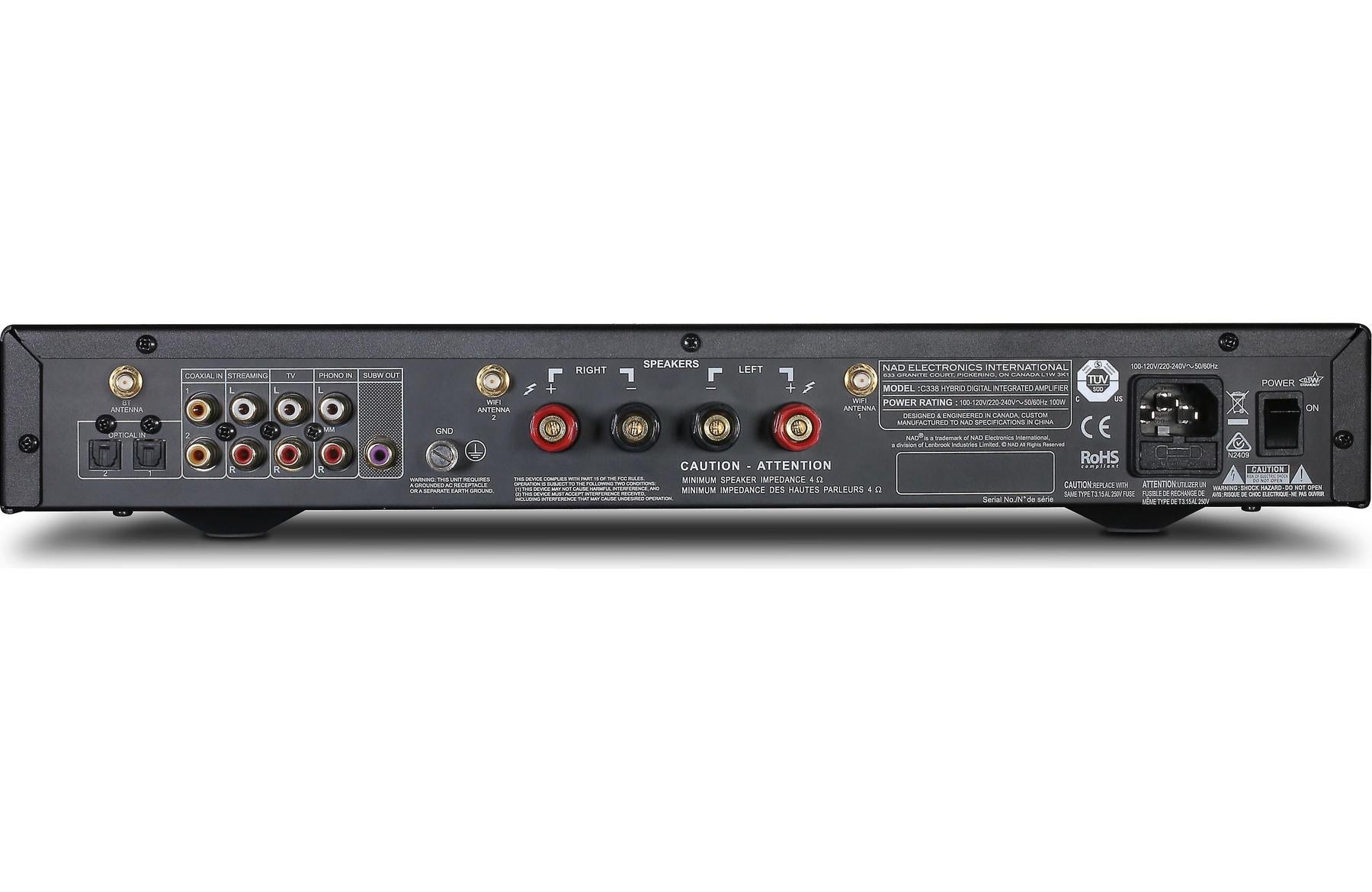

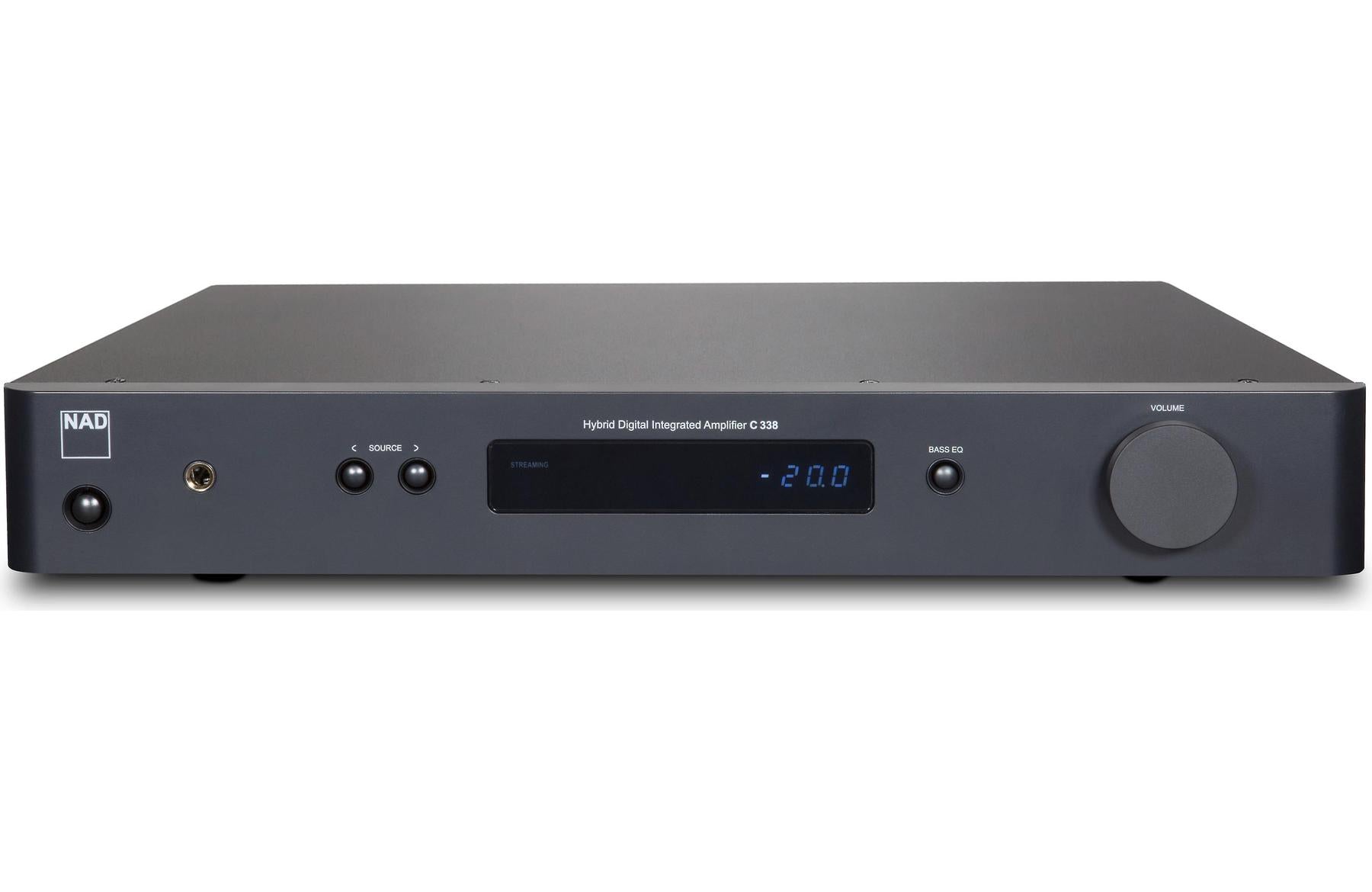

NAD Integrated Amplifier C 338

Art and Sound

The C 338 adds big sound to your favourite music sources and brings incredible flexibility to any stereo system. With Spotify Connect®, Bluetooth®, and the first-ever hi-fi amplifier to have built-in Chromecast®, the C 338 allows you to stream and cast music directly from any music streaming app, letting you enjoy your music wirelessly. Add a turntable using the phono input and experience the warmth of vinyl collections with the room-filling sound of NAD’s HybridDigital amp technology. Power, volume, source selection, and device settings are all controlled using the intuitive interface of the NAD Remote App for iOS and Android.

SPECIFICATIONS

KEY FEATURES

  • 50W x 2 Continuous Power into 8 or 4 Ohms
  • 90W / 150W / 200W IHF Dynamic Power into 8 / 4 / 2 Ohms
  • First hi-fi amplifier to feature Chromecast built-in
  • Integrated Bluetooth® for added music streaming flexibility
  • Built-in Phono Preamp for Turntables
  • Stereo Line, Optical Digital and Coax Digital inputs
  • NAD Remote App support for tablet and smartphone
  • Dedicated Headphone Amplifier
  • Subwoofer Output

PREAMPLIFIER

Line In, Subwoofer Out

  • THD (20Hz-20kHz)
  • <0.005% at 2V out
  • Signal/Noise Ratio
  • >106dB (IHF; A-weighted, 500mV out, unity gain)
  • Input Impedance (R and C)
  • 56 kilohm + 100pF
  • Maximum Input Signal
  • >4.5Vrms (ref. 0.1% THD)
  • Output Impedance
  • Source Z + 200 Ohm
  • Input Sensitivity
  • 50mV (100Hz ref. 500mV out, Volume maximum
  • Maximum voltage output – IHF load
  • >4.5V (ref. 0.1% THD)

Line In, Headphone Out

  • THD (20Hz-20kHz)
  • <0.005% at 1V out
  • Signal/Noise Ratio
  • >105dB (IHF; A-weighted, 32 Ohm loads, ref. 2V out, unity gain)
  • Frequency Response
  • ±0.3dB (20Hz-20kHz)
  • Channel Separation
  • >56dB at 1kHz
  • Output Impedance
  • 0.5 Ohm

GENERAL SPECIFICATIONS

Line In, Speaker Out

  • Continuous Output Power into 4 Ohms and 8 Ohms (Stereo)
  • >50W (at rated THD, 20-20kHz, both channels driven)
  • IHF Dynamic Power
  • 8 Ohm 80W
    4 Ohm 150W
    2 Ohm 210W
  • THD (20Hz-20kHz)
  • <0.03% (250mW to 50W, 8 Ohm and 4 Ohm
  • Signal/Noise Ratio
  • >98dB (A-weighted, 500mV input ref. 1W out in 8 Ohm)
  • Clipping power
  • >60W (at 1kHz 0.1% THD)
  • Peak output current
  • >18A (in 1 Ohm, 1 ms)
  • Damping Factor
  • >300 (ref. 8 Ohm, 20Hz to 6.5kHz)
  • Frequency Response
  • ±0.3 dB (20Hz-20kHz)
  • Channel Separation
  • 1kHz >75dB
    10kHz >65dB
  • Input Sensitivity (For 50W in 8 Ohm)
  • Line In: 380mV, Digital In: 18% FS
  • Sample Rate
  • Up to 24 bit/192kHz

Phono In, Speaker Out

  • THD (20Hz-20kHz) (Stereo)
  • <0.3% at 50W out
  • Signal/Noise Ratio
  • >82dB (200 Ohm source, A-weighted, ref. 500mV out)
    >76dB (MM cartridge source, IHF A-weighted, ref. 500mV out)
  • Input Sensitivity
  • 4.1mV (ref. 50W 1kHz 4 Ohm out, Volume maximum)
  • Frequency Response
  • ±0.3dB (20Hz-20kHz)
  • Input Impedance
  • 47 kilohm + 100pF
  • Maximum Input Signal
  • >80mVrms (ref. 0.1% THD)

POWER CONSUMPTION

  • at ECO Standby mode
  • 0.4 Watts*
  • at Control Standby mode
  • 1.8 Watts**
  • OFF mode (Power switched OFF)
  • 0 Watts



* – After 20 minutes of no user interface interaction and no active source input
** – With established wireless Bluetooth connectivity and 20 minutes of no user interface interaction and no active source input

NOTE: Bluetooth connectivity can be enabled or disabled via press and hold of PLAY button of AMP 3 remote control

WEIGHT & DIMENSIONS

  • Gross Dimensions (W x H x D)*
  • 435 x 70 x 285mm (17 1/8 x 2 13/16 x 11 1/4)”
  • Net Weight
  • 4.85kg (10.7lb)
  • Shipping Weight
  • 5.85kg (12.9lb)

*Gross dimensions include feet, extended buttons and rear panel terminals
