Name: GRADO TIMBER PLATINUM3 Phono Cartridge
Brand: Grado
Price: 495.0 CAD
Availability: InStock

GRADO reference Platinum2 Phono Cartridge, Grado cartridge, Phono cartridge montreal, Phono cartridge free shipping,cartridge for turntable, grado free shipping, grado art et son

Roll over image to zoom in Click on image to zoom

Platinum Blonde

The first step-up from the Opus3, the Platinum3 puts Jarrah wood and a twin magnet system to work for your favorite music.

Timbre in a Nutshell.

Hear More

The Platinum3 is a great example of what the Timbre Series is made for: to start listening to your music with more clarity and depth than you’ve heard before.

Since we have considerably fewer turns in the Statement Series we can use a much larger size wire, thus knocking resistance from 470 ohms to 2 ohms in the Statement Series. This new wire has over 16 times more area for carrying the signal: this also shortens the distance the signal must travel from 125ft to a little over 7ft. In the Statement series we have also shortened the magnetic gap, increasing the flux density.

The Materials

To make the Timbre Series work as a whole, we created a way for Jarrah, diamonds, and a twin magnet system to integrate with our Flux-Bridge™. We modified our four piece OTL cantilever technology to achieve a 10% tip mass reduction over the Prestige Series and use ultra-high purity long crystal (UHPLC) oxygen free copper wire in the coils. The Platinum3 uses a specially Grado designed elliptical diamond.

In the Details.

Extreme Precision

Grado has combined newly developed coil winding techniques with decades-old disciplines. A new two-step shielding process brings not only exact unison between the four coils but an unobstructed path for a cleaner signal. The music is allowed to travel undistorted through the coils, greatly reducing mechanical noise while improving tracking. There is an extreme clarity over the full frequency range, with absolutely no stridency or shrillness. Precisely hand tipped with a diamond, a great amount of care go into each cartridge we build.

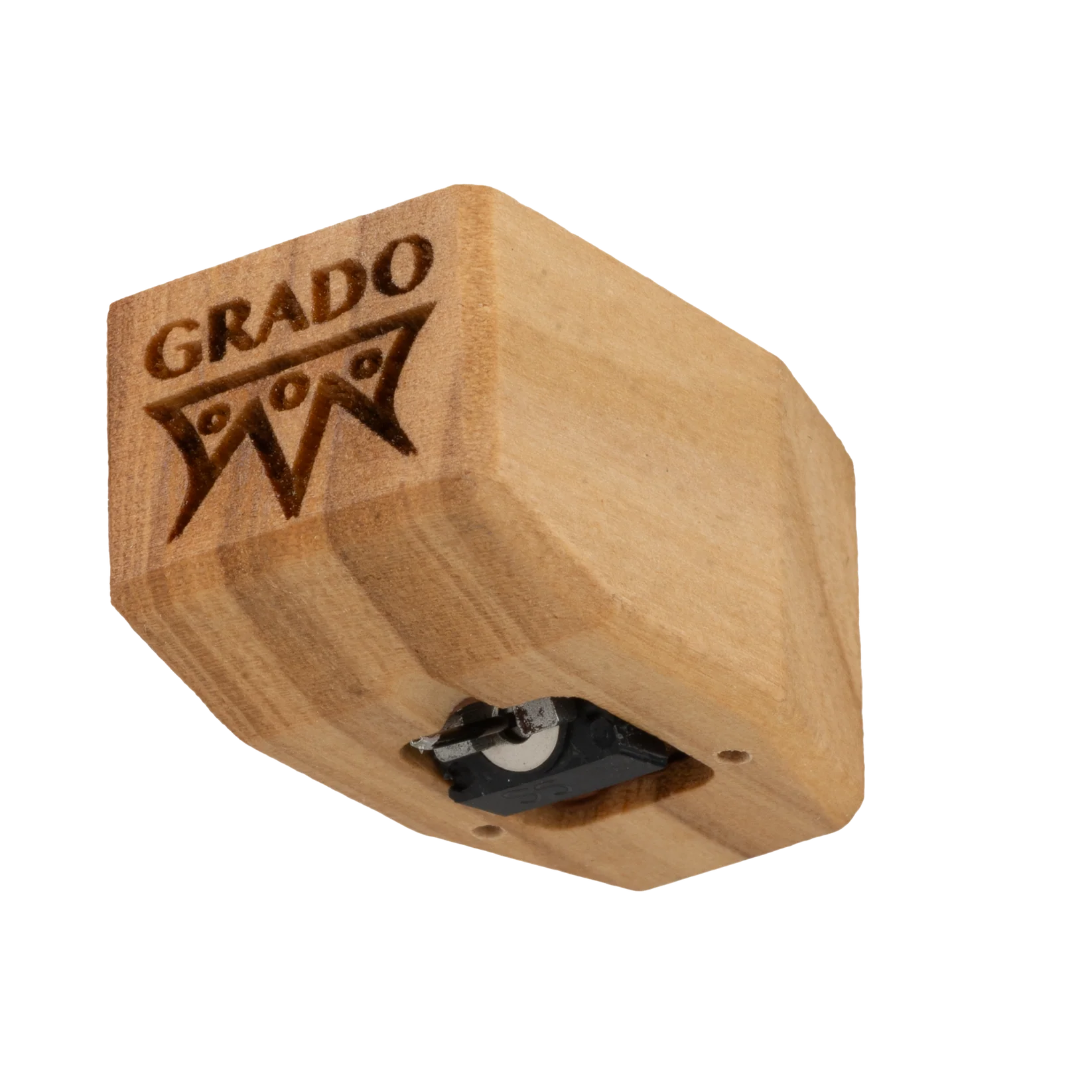

Built from Jarrah

After the Platinum3 cartridge is crafted, it is then placed inside an Australian Jarrah housing. Jarrah is necessary for the majority of Timbre Series with its ability to produce surgically precise clarity without losing any depth. Through a variation of thermal aging processes, the housing gains the ability to better dampen and control the resonant frequencies.

With Love.

Hand-Built in Brooklyn

Each Platinum3 is hand-built by our team in Brooklyn, as it has been for decades. Fine tuned for everything from entry-level turntables up to the highest-end stereo systems, the solid mass of the wood helps keep the Platinum3 steady and producing the Grado signature

SPECS

Body: Australian Jarrah Wood
Cantileaver: Aluminum / Elliptical Diamond
Output:
High 4.0mV @5 CMV (45)
Low 1.0mV @5 CMV (45)
Inductance:
High Output 55mH
Low Output 6mH
Resistance:
High Output 660 ohms
Low Output 70 ohms

Input Load: 10k-47k ohms
Cartridge Weight: 9 grams
Tracking Force: 1.6-1.9 grams
Compliance 20μm/mN
Channel Separation: Average 30db - 10-30k Hz
Controlled Frequency Response: 10-60 KHz
Non-Sensative to Capacitive Load
Builds: High Output, Low Output, Mono
