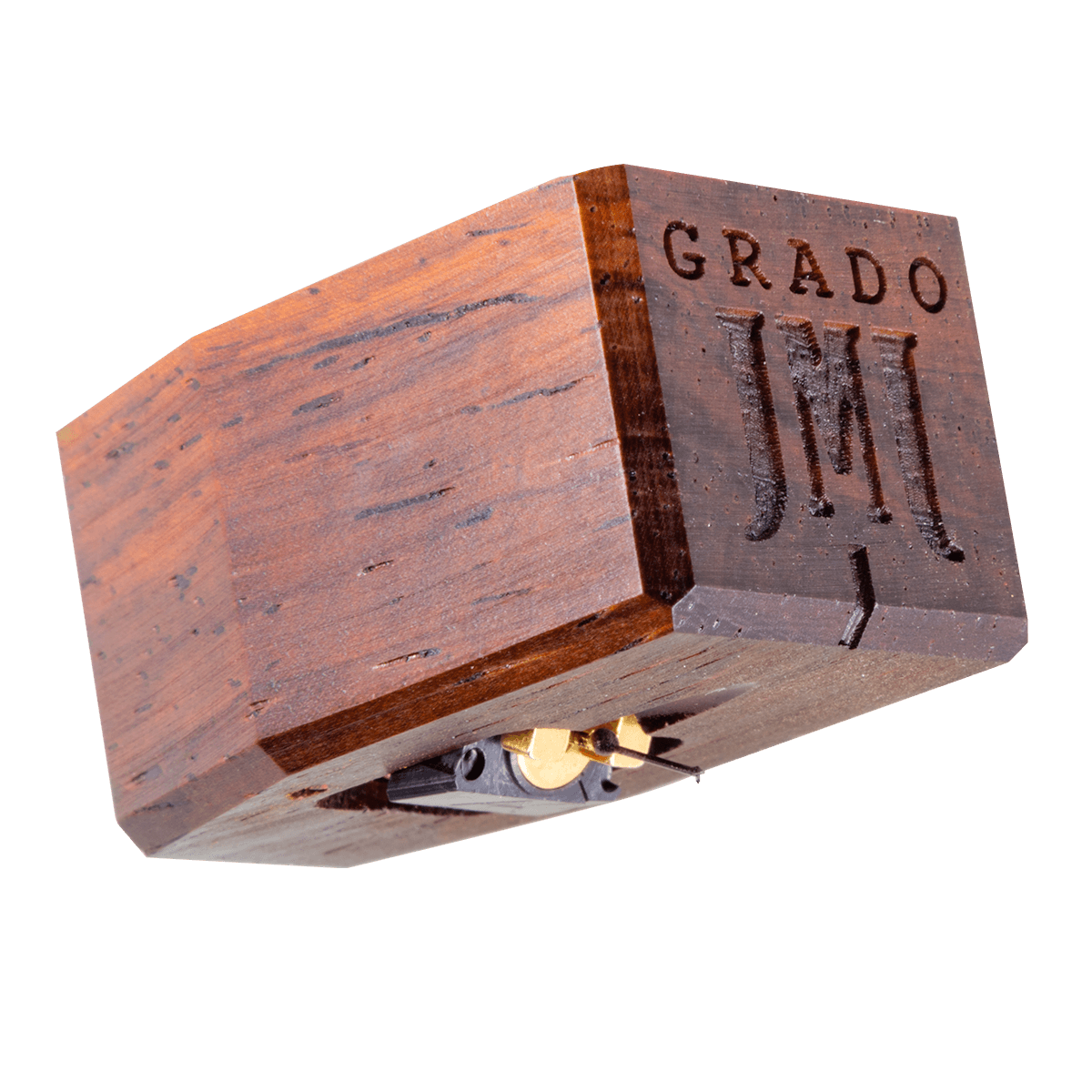

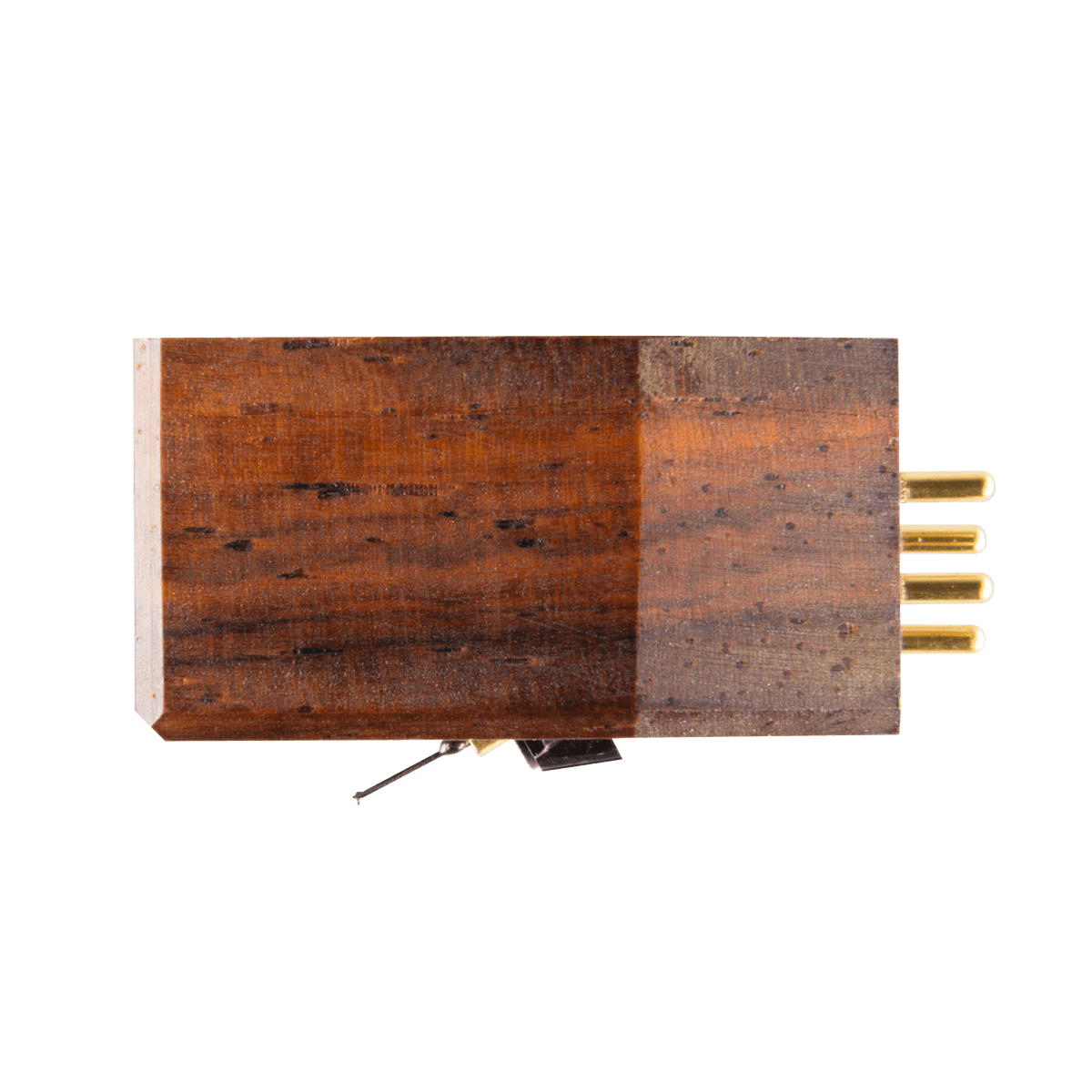

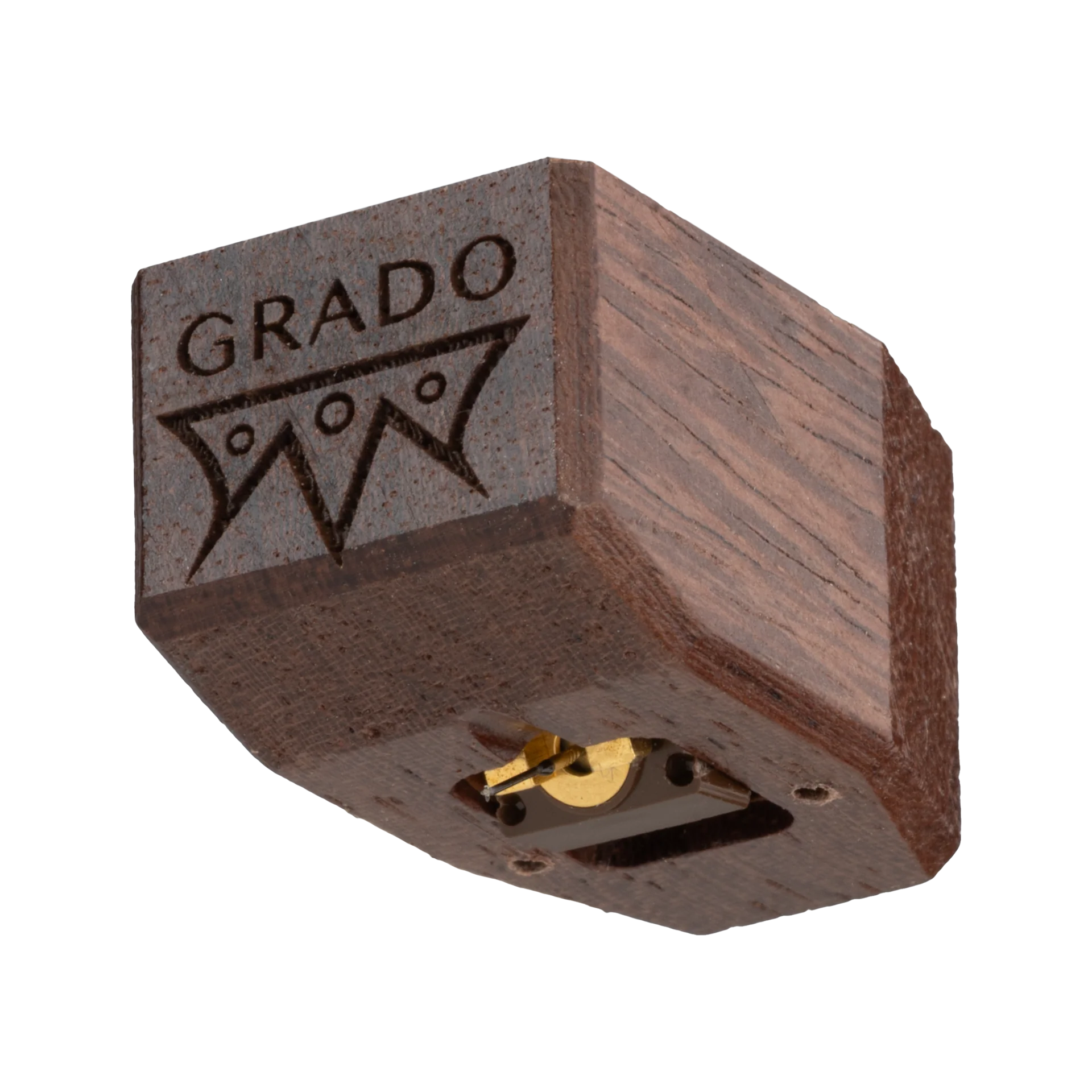

GRADO LINEAGE SERIES AEON Phono Cartridge

Art and Sound

All of the internal magnetic circuit parts are Swiss screw machined or molded metal, which have tolerances on the order of the best Swiss-made watches. The specially designed diamond stylus, for the first time in a Grado, is mounted on a sapphire cantilever that connects to the stylus generating system. The Lineage series features a unique system that has the lowest effective moving mass of any cartridges, while Grado’s patented Flux-Bridger generator design creates a superior balance throughout the full frequency spectrum with superb resolution and clarity, which produces an overall truer picture of the music. This is all nestled inside a selected cocobolo wooden housing.

In 1953, the Grado family started building cartridges on their kitchen table. Every experience in the family’s history has led to the creation of the Lineage Series. The Aeon represents the craftsmanship and unwavering dedication to sound that has been Grados main focus for over 65 years.

  • Output = 1mV @ 5 CMV
  • Controlled frequency response = 6 Hz - 72 KHz
  • Channel separation: avg. 33dB - 6 Hz - 72 KHz
  • Loading: 47,000 ohms
  • Inductance: 30 mH
  • Resistance: 91 ohms
  • Non-sensitive to capacitive load
  • Chasis mass: 12 grams
  • Tracking force: 1.5 - 1.9 grams
