Dali In-Ceiling / Wall Speaker Phantom E-60

Art and Sound

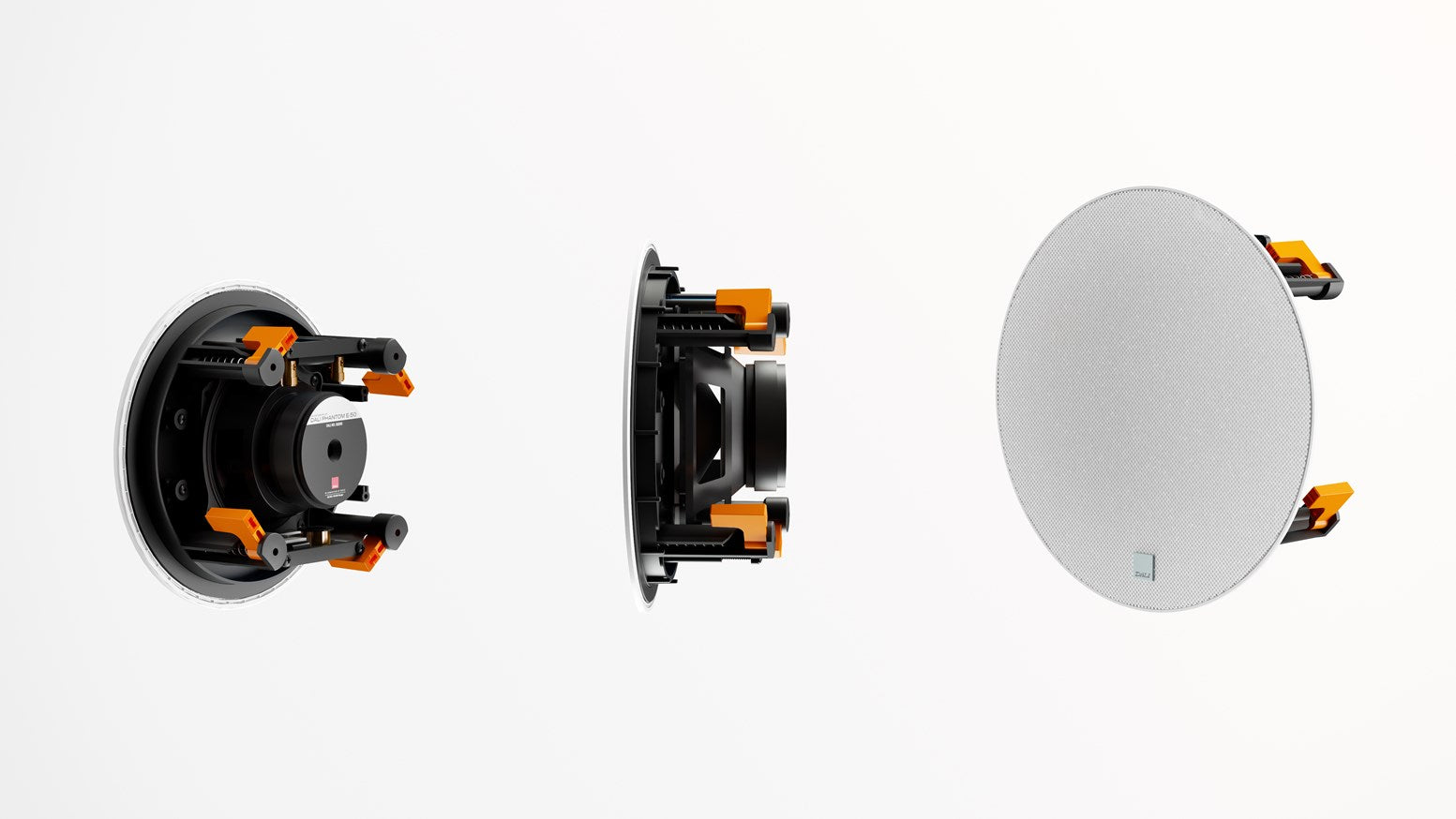

The DALI PHANTOM E-60 is the perfect all-around speaker. It is not too big and therefore still easy to place, but it is big enough to deliver a full and complete audio experience. The E-60 is equipped with a 6½" woofer and designed for optimum in-ceiling use, but can also be mounted in-wall.

DALI PHANTOM E-60 SPECS

Product series PHANTOM
Frequency Range (+/-3 dB) [Hz] 52 - 25,000
Sensitivity (2,83 V/1 m) [dB] 88.0
Nominal Impedance [ohms] 8
Maximum SPL [dB] 104
Recommended Amplifier Power [W] 30 - 120
Crossover Frequency [Hz] 3,300
High frequency driver, Quantity 1 x 28 mm
High frequency driver, Diaphragm type Soft Textile Dome
Low frequency driver, Quantity 1 x 6½"
Low frequency driver, Diaphragm type Polypropylene Cone
Enclosure type Open back
Recommended Working Volume 5 - 50 L
Connection Input Single Wire
Recommended Placement In-Wall
In-Ceiling
Functions Focus / Distributed
Normal / HF + Tilt
Dimensions (ØxD) [mm] 258 x 99
Cut-Out Dimensions (ØxD) [mm] Ø225
Weight [kg] 1.92
Recommended Volume [litre] 5 - 50
Accessories Included Cut-Out Template
Logo Badge
Manual
Optional Accessories Square Grille
