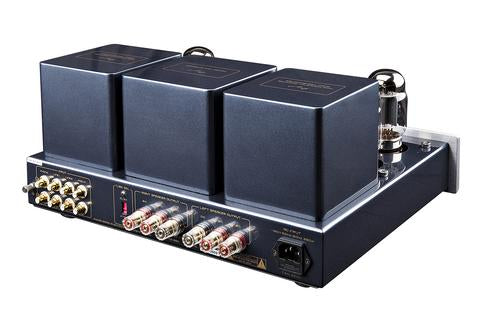

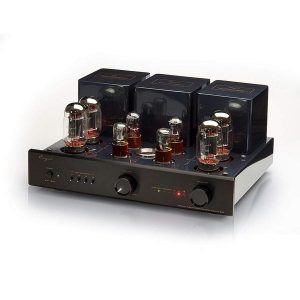

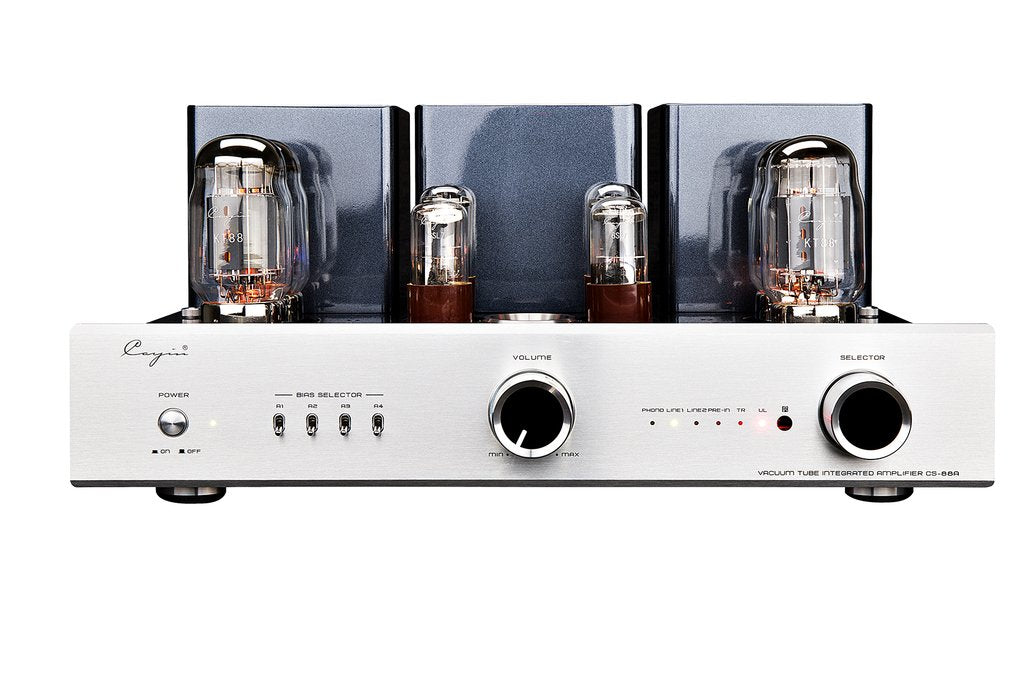

CS-88A
- Hand-made construction with the finest point-to-point wiring.
- Two EI output transformers with wide bandwidth are applied.
- Specially designed toroid transformer for power supply.
- Two 6SL7 and two 6SN7 tubes are used in the preamp stage.
- Four KT88/6550EH tubes are used for AB1 push-pull amplification.
- Triode and Ultralinear selection.
- External user Bias Adjustment is accessible with the BIAS meter for monitoring on
- the top of the amplifier.
- External Tube Selection Switch between EL34 and KT88 on the rear panel for easy
- tube replacement.
- Equipped with remote control.
- Can be used as a Power amplifier.
- Soft start function (about 30 seconds).
- CS-88A can memorize last operation of the unit once turned off.
- High-quality Japanese ALPS motor potentiometer.
- Thickly silver-plated signal cable has been used.
- Equipped with easily-installed tube cover for protection.
|
Model |
CS-88A |
Power Output |
27W+27W (Triode) 48W+48W (Ultra-linear) |
|
Frequency Response |
10Hz～42kHz (-3dB) |
THD |
1%(1kHz) |
|
Power Supply |
Custom made Torroidal |
Power Consumption |
<280w |
|
S/N Ratio |
93dB |
Input Sensitivity |
300mV (Integrated) |
|
Dimension |
420 × 382 × 195 mm(W×D×H) |
Net Weight |
28kg |
|
Output Impedance |
4Ω，8Ω |
Input Impedance |
100KΩ |
|
Tube |
6SL7×2, 6SN7×2, KT88×4 |
Input Terminals |
Line 1, Line 2, Line 3, Pre-In |
