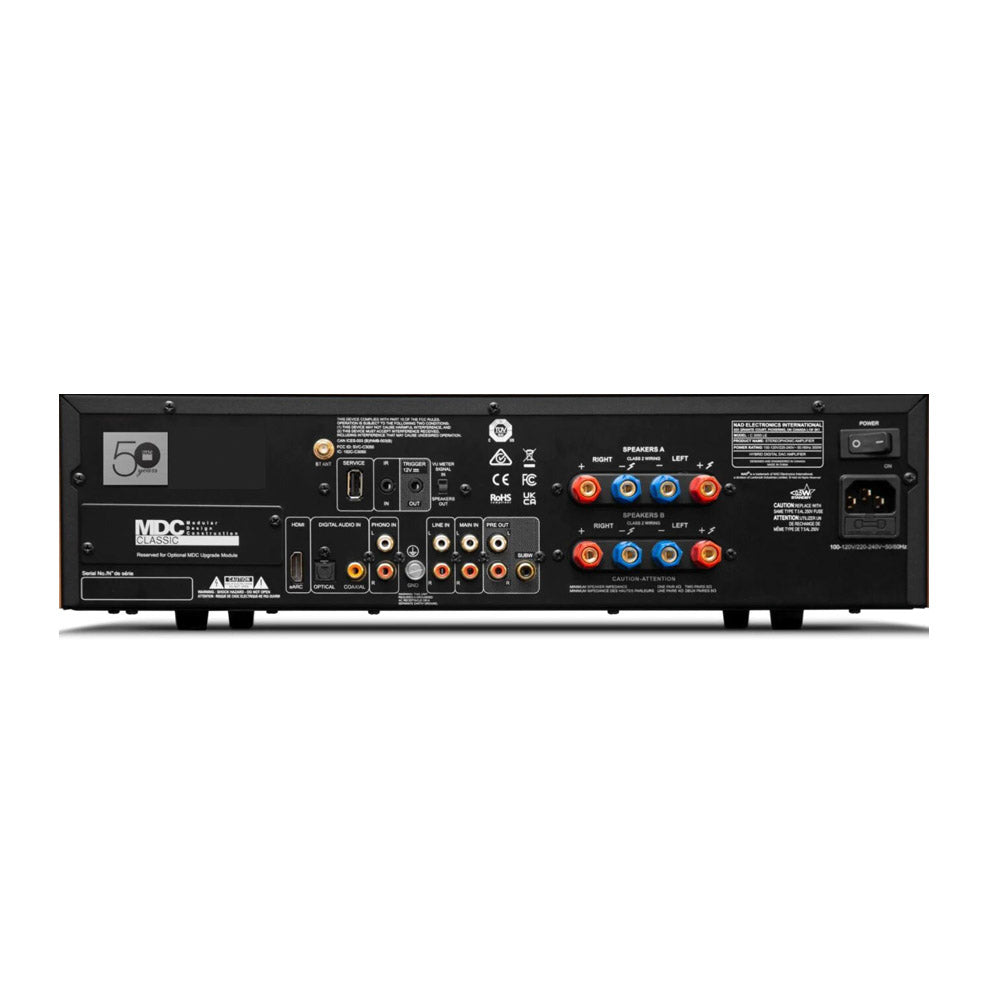

In the C 3050 Stereophonic Amplifier, NAD’s 50-year history of innovation meets the future of hi-fi. With its dual VU meters, push-button input selectors, walnut-finished vinyl-clad cabinet, and 1970s cursive-style branding, the C 3050 recalls the components that helped a generation of music-lovers discover the joys of great audio. With its 100-watt-per-channel HybridDigital UcD amplifier and Texas Instruments high-resolution differential DAC, the C 3050 delivers sound that will thrill today’s discerning listeners. And thanks to NAD’s MDC2 future-proofing technology, C 3050 owners can add leading-edge capabilities like BluOS high-resolution multi-room streaming and Dirac Live room correction.

NAD C 3050 LEVIATON Series Hybrid Digital Amplifier:
Type: Hybrid Digital Integrated Stereo Amplifier with Phono & DAC
Amplifier Topology: Class D (HybridDigital with GaN FET output stage)

Power Output (Continuous, both channels driven):
100W per channel into 8Ω (20Hz - 20kHz, at ≤0.03% THD)
150W per channel into 4Ω (20Hz - 20kHz, at ≤0.03% THD)
Power Bandwidth: 20Hz - 20kHz (±0.1dB)

Distortion & Performance (General):
Total Harmonic Distortion (THD): <0.03% (20Hz - 20kHz, at 1W)
Intermodulation Distortion (IMD): <0.03% (19kHz + 20kHz, SMPTE)
Frequency Response: 20Hz - 20kHz (±0.3dB)
Signal-to-Noise Ratio (S/N): >98dB (A-Weighted, ref. 1W)
Damping Factor: >250 (ref. 8Ω)

Line Input, Pre-Out Section:
THD (20Hz – 20kHz): <0.005% at 2V out
Signal-to-Noise Ratio: >95 dB (IHF A-weighted, ref. 500 mV out)
Channel Separation: >100 dB at 1kHz, >90 dB at 10 kHz
Input Impedance: 28 kΩ + 360 pF
Maximum Input Signal: >4.5 Vrms (ref. 0.1% THD)
Output Impedance: 440 Ω
Input Sensitivity: 270 mV (ref. 500 mV out, Volume maximum)
Maximum Voltage Output: >2 V (ref. 0.1% THD)

Phono Input, Pre-Out Section:
THD (20Hz – 20kHz): <0.03% at 2 V out
Signal-to-Noise Ratio: >79 dB (200 Ω source; A-weighted, ref. 500 mV out)
Input Impedance: 46 kΩ / 100 pF
Input Sensitivity: 5.5 mV (ref. 500 mV out, Volume maximum)
Maximum Input Signal at 1kHz: >80 mVrms (ref. 0.1% THD)

Line Input, Headphone Out Section:
THD (20Hz – 20kHz): <0.005% at 1V out
Signal-to-Noise Ratio: >96 dB (32 Ω loads; A-WTD, ref. 2 V out)
Channel Separation: >60 dB at 1kHz

Input Section:
Analog Inputs: 3 × Line Level (RCA), 1 × Moving Magnet (MM) Phono (RCA)
Digital Inputs: 2 × Digital Optical (Toslink), 1 × Digital Coaxial (RCA), 1 × USB Type B (for Computer)
Bluetooth Input: 5.0 with Qualcomm® aptX® Adaptive, AAC, and SBC
Input Sensitivity (Line): 300mV
Input Sensitivity (Phono MM): 2.5mV
Overload Margin (Phono): >20dB

Output Section:
Pre-Out: 1 × Variable (RCA)
Subwoofer Out: 2 × (RCA, independently configurable)
Headphone Output: 6.35mm (1/4") Jack (on front panel, discrete high-current amplifier)
Speaker Outputs: 4mm Binding Posts (supports two pairs, A/B switching)

BluOS Audio Section (with optional MDC module):
Supported Audio File Formats: MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
Supported High-Resolution Audio File Formats: FLAC, MQA, WAV, AIFF
Sampling Rate: Up to 192 kHz
Bit Depths: 16 – 24
Supported Services: Extensive music services and internet radio (via BluOS app)
Integration Partners: Control4, Crestron, ELAN, Lutron, Push, Roon, RTI, URC
Voice Control: Amazon Alexa, Google Assistant, Apple Siri (with enabled devices)

DAC & Digital Engine:
DAC Type: ESS Sabre ES9028Q2M 32-bit HyperStream DAC
Master Clock: Dual-Mode, ultra-low jitter design
Resolution: Up to 32-bit/384kHz PCM, DSD256 (via USB)
Digital Filter: 7 Selectable Filter Types

General Specifications:
Power Supply: Custom Toroidal Transformer with discrete regulation
Power Consumption: <0.5W Standby, 500W maximum
Dimensions (W×H×D): 435mm × 130mm × 385mm
Weight: 12.5 kg
Finish: Walnut Wood Casewrap with Brushed Aluminum Front Panel (Silver)
Display: Full-Color LCD Display with VU Meter modes

Included Accessories:
Remote Control (NAD Aluminum RC3), Power Cable (IEC), USB Cable, Factory Test Report, User Manual

Additional Features:
MDC (Modular Design Construction) Slot: Two slots for future hardware upgrades
NAD Link: For multi-room system control and integration
Trigger Input/Output: 12V DC (3.5mm Jack) for system automation
BluOS Ready: MDC BluOS-D Module slot for high-resolution streaming (sold separately)
Auto Sense: Automatically powers on with signal detection
Tone Controls: Defeatable Bass and Treble controls, Loudness compensation
Dirac Live® Bass Control Ready (via MDC module)
