Thanks to the DAC chip’s four-channel True Native design, PCM and DSD take separate pathways and remain ‘bit-perfect’ in their direct-native form, right through to analogue conversion. In the case of DSD, there is no conversion to PCM or application of multi-bit processing – this is unusual and makes the NEO Stream an excellent choice for DSD purists.
Inputs
- Dual-band Wi-Fi reception (2.4GHz and 5GHz) with 802.11a/b/g/n/ac support

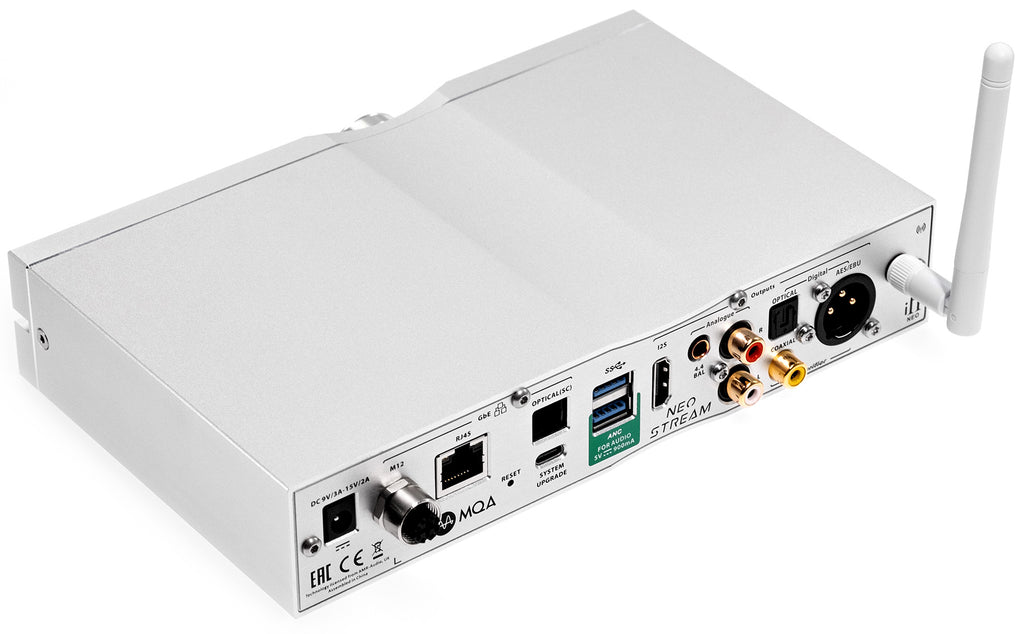

- Gigabit Ethernet (LAN) – 1x RJ45; 1x M12; 1x Optical LAN (see below for more information)
- 2x USB-A (USB2.0 and SuperSpeed USB3.0 supported)
- 1x USB-C system update port (OTA – Over The Air – updates also available)
Outputs
- Analogue – 1x stereo RCA; 1x 4.4mm balanced
- Ultra-res digital (PCM 768kHz, DSD512) – 1x HDMI-I2S; 1x USB-A (USB3.0)
- Hi-res S/PDIF digital (PCM 192kHz) – 1x optical; 1x coaxial; 1x AES/EBU
Unique optical LAN
Connecting to your network router via cable rather than relying on Wi-Fi? The NEO Stream includes a unique option alongside its RJ45 and M12 ports – optical LAN. This is our own technology. Connect the OptiBox transceiver to the router, and the NEO Stream to the OptiBox via an optical cable. Both the OptiBox and cable are included.
Benefit from the highest quality digital audio connection possible between the router and the streamer.
- Ultra-fast data speeds of up to 10Gbps
- Bit-perfect transmission of ultra-resolution audio
- Minimal degradation across distances of up to 1km
The LAN signal from the router is regenerated, reclocked and rebalanced by the OptiBox; true galvanic isolation is applied, with zero parasitic capacitance and inductance.
Come on, heal the noise
The NEO Stream has been painstakingly engineered to remove noise and distortion from the audio signal:
- USB ports use our ANC II active noise cancellation technology
- S/PDIF outputs incorporate iPurifier technology
- The digital signal is regulated by our femto-precision GMT (Global Master Timing) clock to eradicate jitter
- The retina-grade TFT display boasts SilentLine design so no electrical noise interferes with the audio signal
- Circuit components with low ESR, high linearity and low noise mean great sound quality
Voltage regulators with high PSRR (Power Supply Rejection Ratio), low idle current and low dropout equal low power supply noise and a synchronous 1.2MHz high-speed power supply controller to improve filtering efficiency mean power supply noise is vanishingly low.
The NEO Stream has more clarity and texture, and a more dynamic and engaging performance – quite simply, you hear more of the music, just as the artist intended.
